360Z XT Zero Turn Mower
Take on bigger jobs and get them done faster with the more powerful engine, larger deck sizes and 8.5 MPH max speeds of the 360Z XT. A bright LED headlight provides enough light to extend your mowing day and the fully-welded steel provides the durability to tackle even the toughest terrain. Limited quantity on select models, see your local dealer for availability.Cutting Width
48" +
Top Gross Power*
24 - 25 HP
Height of Cut
1.5-4.5"
Limited Warranty†
3 Years
Features

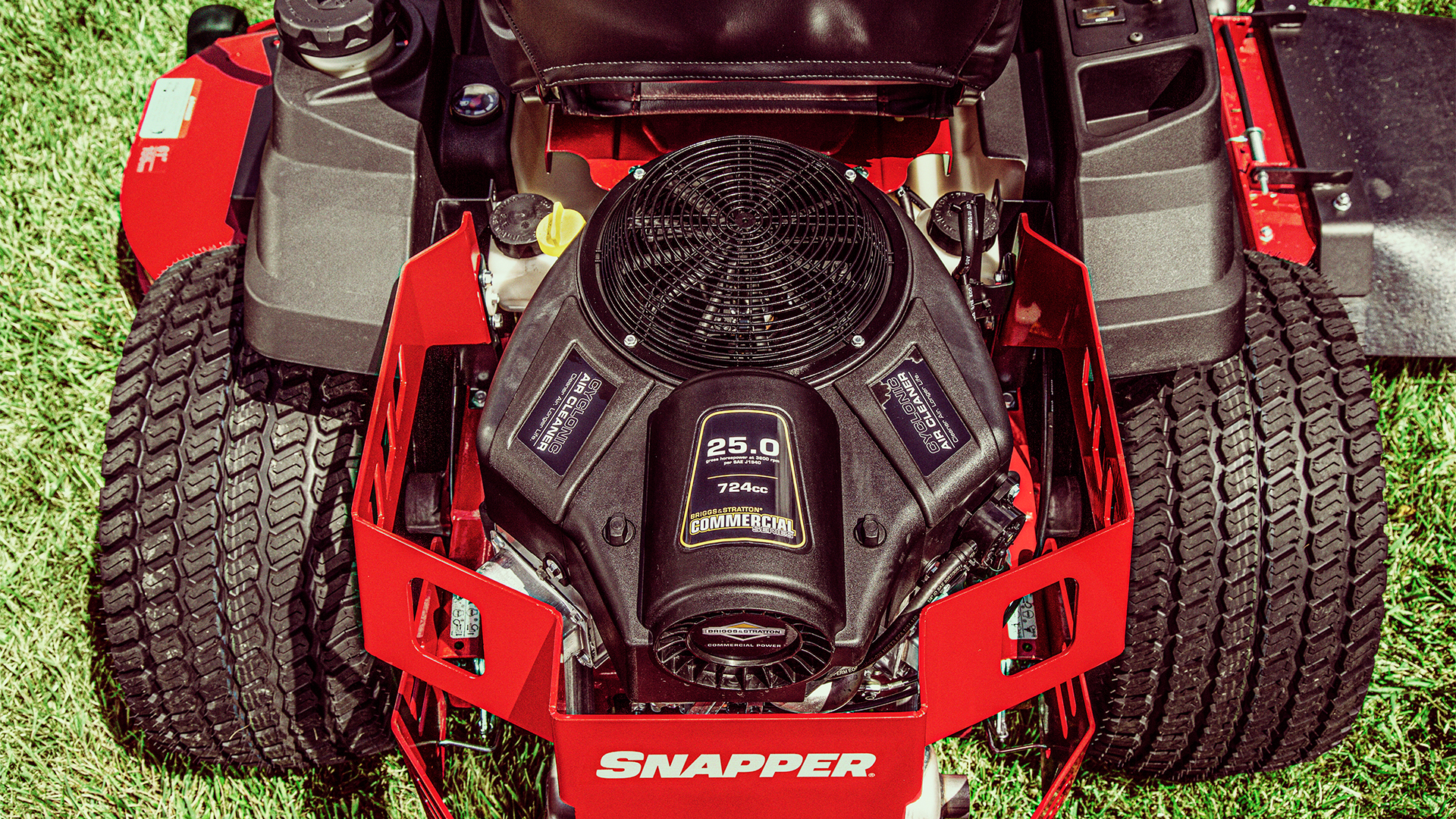

COMMERCIAL COMPONENTS
Featuring Hydro-Gear® ZT-3100® transmission and large rear turf tires, this zero turn puts you on par with commercial landscaping mowers.

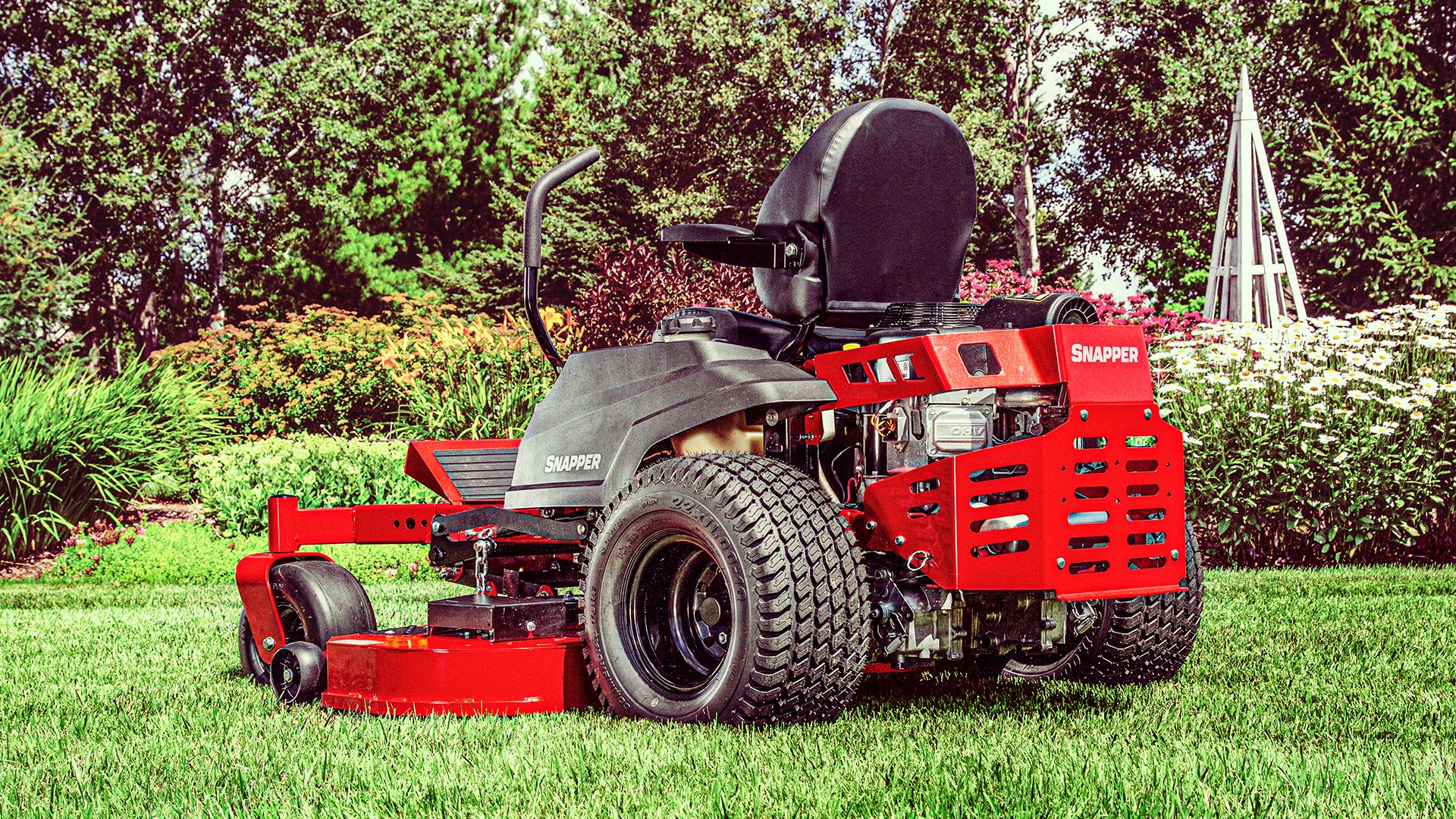

BETTER MANEUVERABILITY
Large, 13" front caster wheels and 22" rear commercial turf tires provide added traction when you are navigating your lawn.

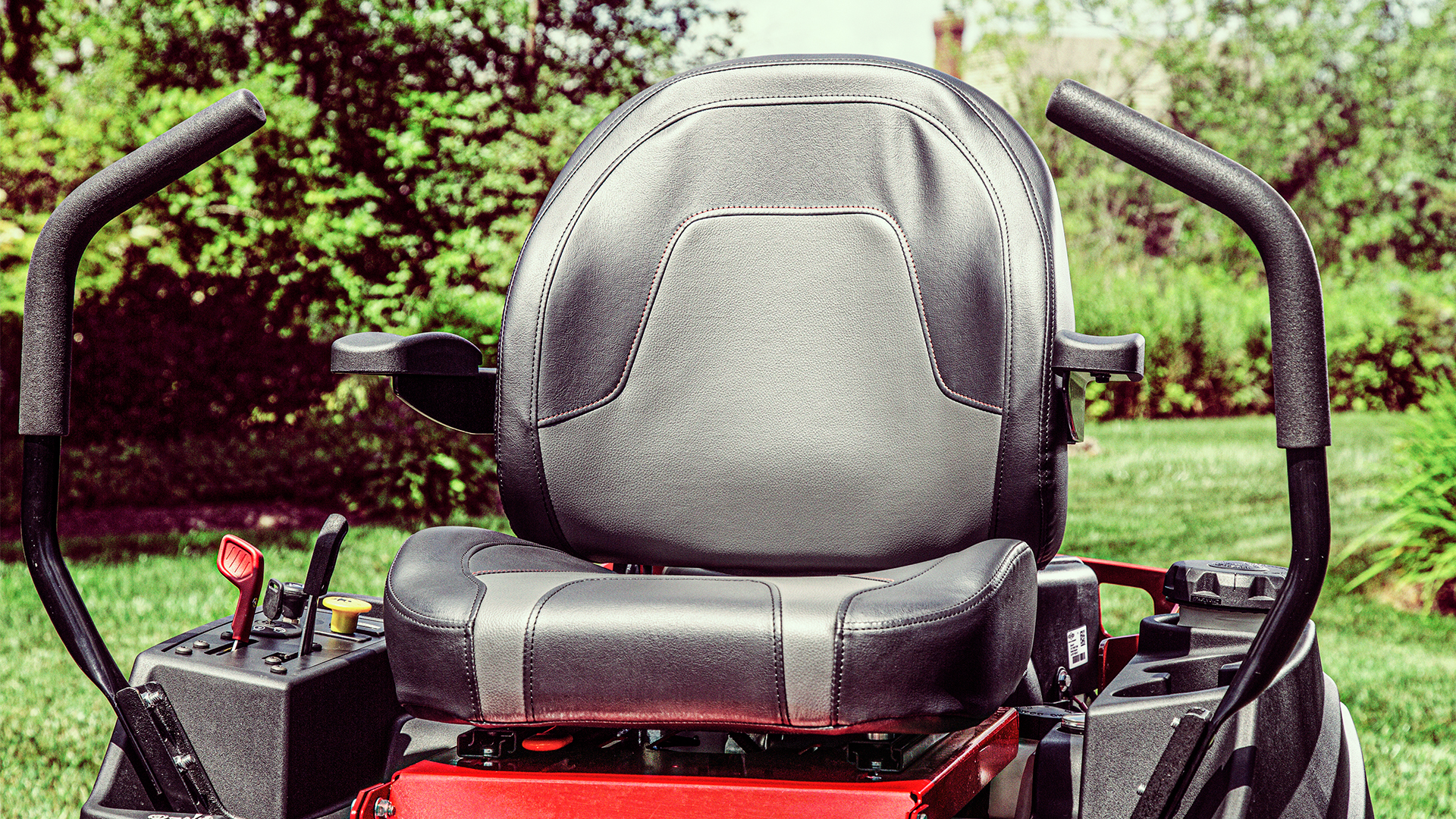

PREMIUM COMFORT
The quality construction of the 18" cut & sew seat with armrests offers long-lasting comfort and reliability when tackling your yardwork.

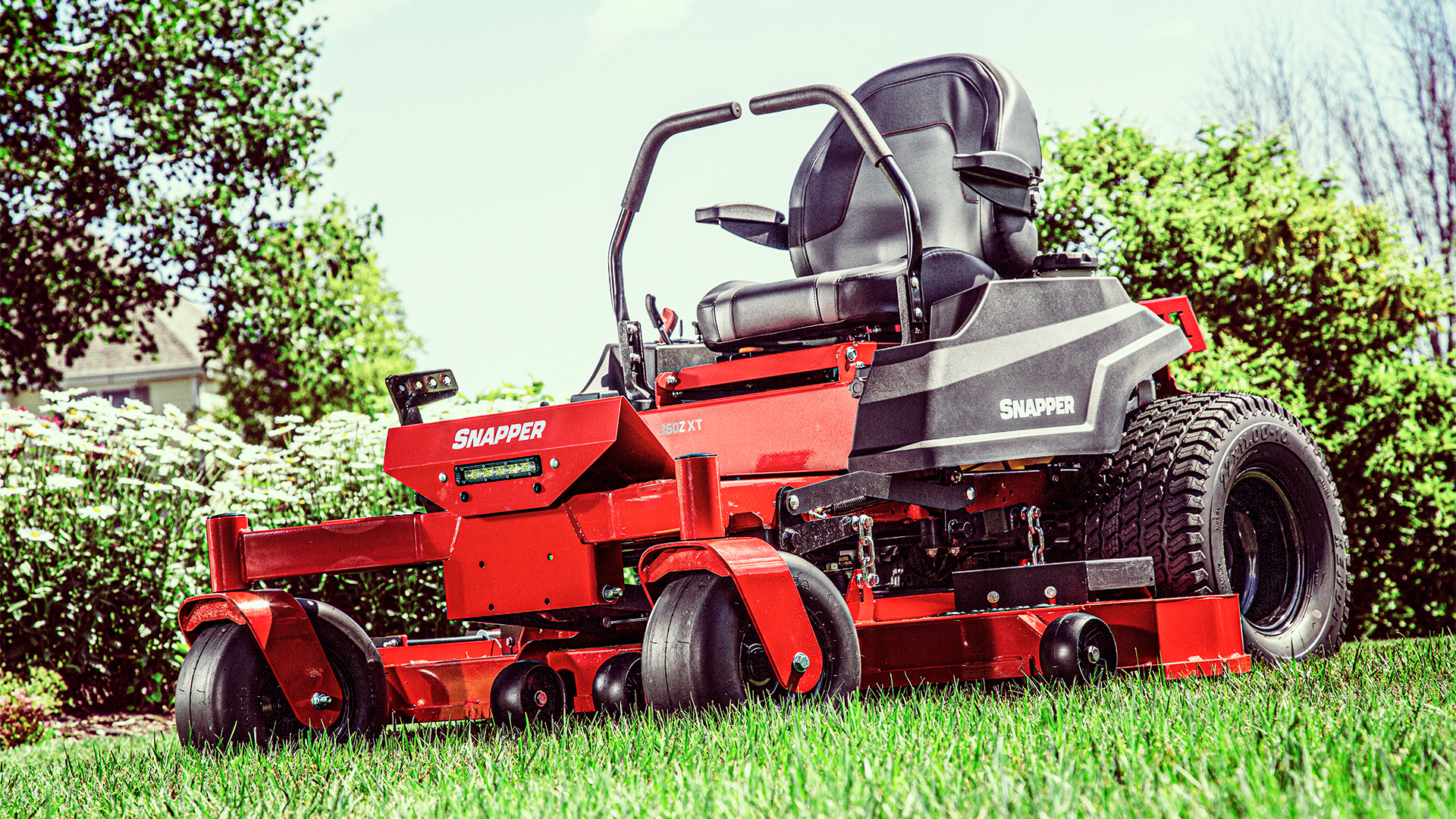

INCREASED MOWER DECK SIZE
A heavy-duty fabricated steel deck, available in 52" and 61," means that you’ll cover more ground in less time.
Specifications
Selected Models:
| 2691816 | 2691817 | |
| Model/Part Number | 2691816 | 2691817 |
| US MSRP ^ | $6,049.00 | $6,499.00 |
| CA MSRP ^ | $7,899.00 | $8,399.00 |
| Engine Brand | Briggs & Stratton® CXi Series™ | Briggs & Stratton® CXi Series™ |
| Horsepower | 25 | 25 |
| Engine Displacement (cc) | 724 | 724 |
| Starting Type | Key | Key |
| Engine Features | Spin-On Oil Filter | Spin-On Oil Filter |
| Fuel Tank Capacity (US gal) | 3 | 3 |
| Transmission | Hydro-Gear® ZT-3100® w/ Charge Pumps | Hydro-Gear® ZT-3100® w/ Charge Pumps |
| Differential | No | No |
| Ground Speed - FWD (mph) | 0 - 8.5 | 0 - 8.5 |
| Ground Speed - Rev | 0-4 | 0-4 |
| Brake | Internal | Internal |
| Frame | 12-Gauge Welded | 12-Gauge Welded |
| Front Axle | Welded Steel, Fixed | Welded Steel, Fixed |
| Front Tires (in) | 13 x 6.5-6 | 13 x 6.5-6 |
| Rear Tires (in) | 22 x 11 | 22 x 11 |
| Number of Anti-Scalp Wheels | 4 Front | 4 Front |
| Deck Type | Fabricated Steel | Fabricated Steel |
| Cutting Width (in) | 52 | 61 |
| Number of Blades | 3 | 3 |
| Mower Configuration | Side Discharge | Side Discharge |
| Height of Cut (in) | 1.5 - 4.5 | 1.5 - 4.5 |
| Height of Cut Positions | 13 | 13 |
| Blade Engagement | Electric | Electric |
| Deck Suspension/Thickness | Frame Hung / 10-Gauge w/ Doubler Plate | Frame Hung / 10-Gauge w/ Doubler Plate |
| Spindle | Aluminum | Aluminum |
| Deck Lift | Mechanical, Foot Operated | Mechanical, Foot Operated |
| Seat | 18" Premium Seat w/ Armrests | 18" Premium Seat w/ Armrests |
| Steering/Turning Radius (in) | Twin-lever / Zero | Twin-lever / Zero |
| Cargo Bed** | No | No |
| Rear Hitch Kit | Standard | Standard |
| Headlights | LED | LED |
| Hour Meter | Yes | Yes |
| Cup Holder | Yes | Yes |
| Fuel Level Indicator | Fuel Gauge in Tank | Fuel Gauge in Tank |
| Assembled Length (in) | 78.5 | 80 |
| Assembled Width (in) | 64 | 47 |
| Assembled Height (in) | 48 | 48 |
| Residential Limited Warranty (Product) | 3-Year | 3-Year |
| Commercial Limited Warranty (Product) | 90-Day | 90-Day |
| Operator's Manuals |
Fine Print
*All horsepower levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton. All horsepower levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.
**50 lb. capacity, do not overload; do not carry passengers. Available on select models. See operator’s manual for details. Additional cargo bed accessories sold separately. Ask dealer for details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
†See operator’s manual or dealer for complete warranty details.
**50 lb. capacity, do not overload; do not carry passengers. Available on select models. See operator’s manual for details. Additional cargo bed accessories sold separately. Ask dealer for details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
†See operator’s manual or dealer for complete warranty details.
