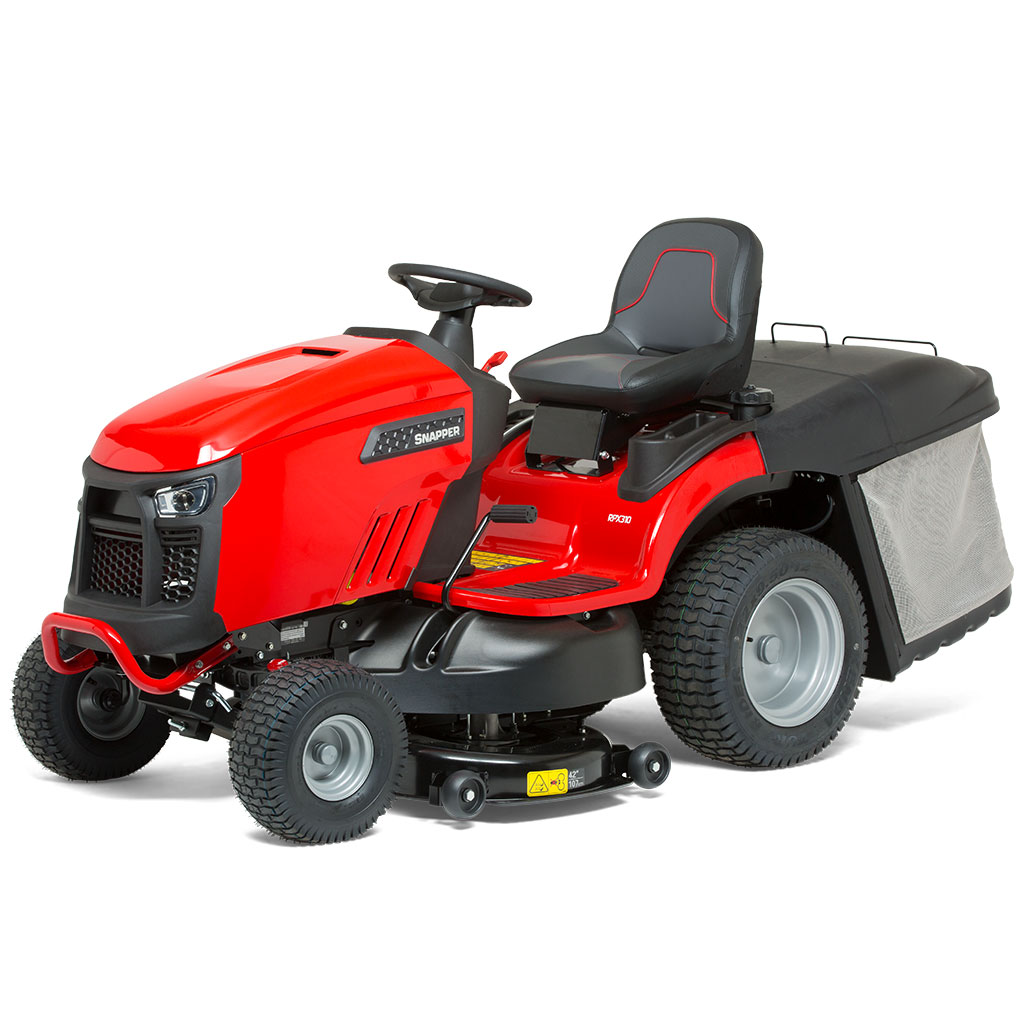

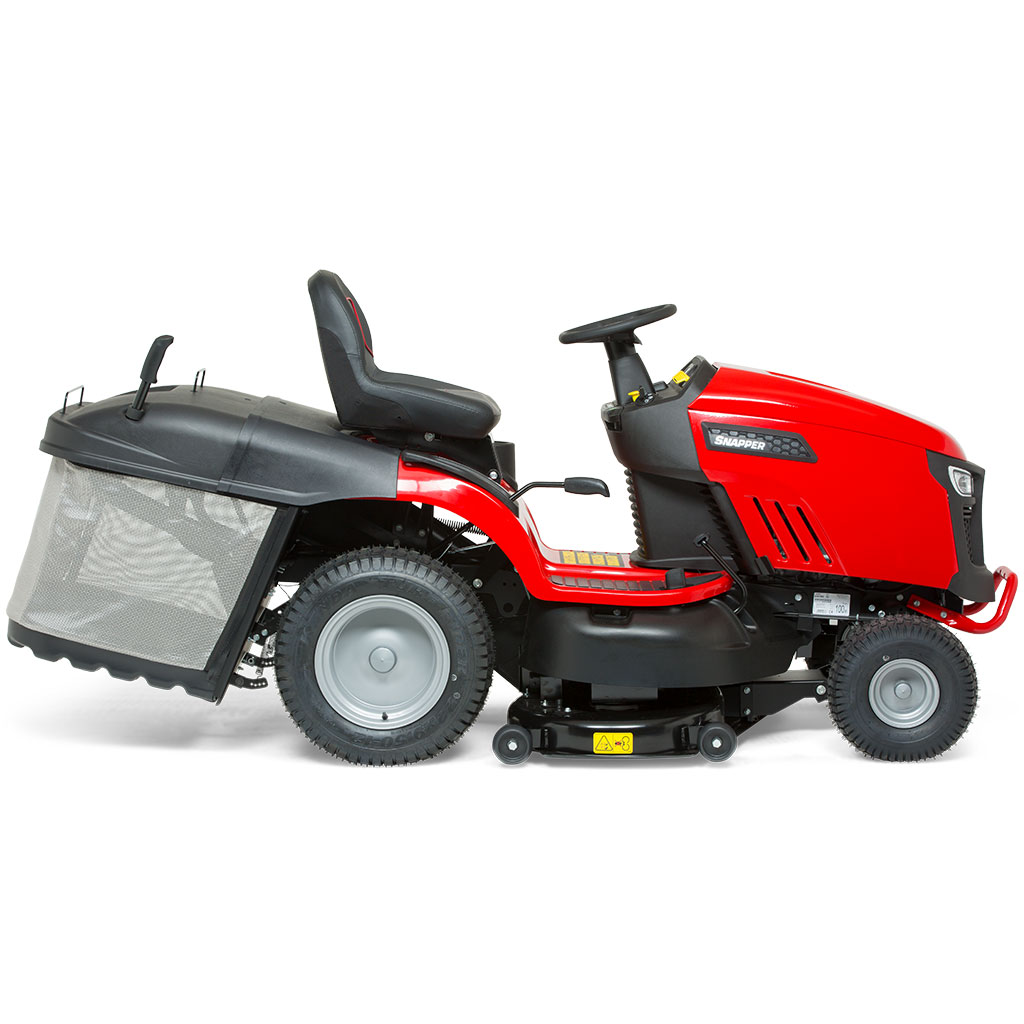

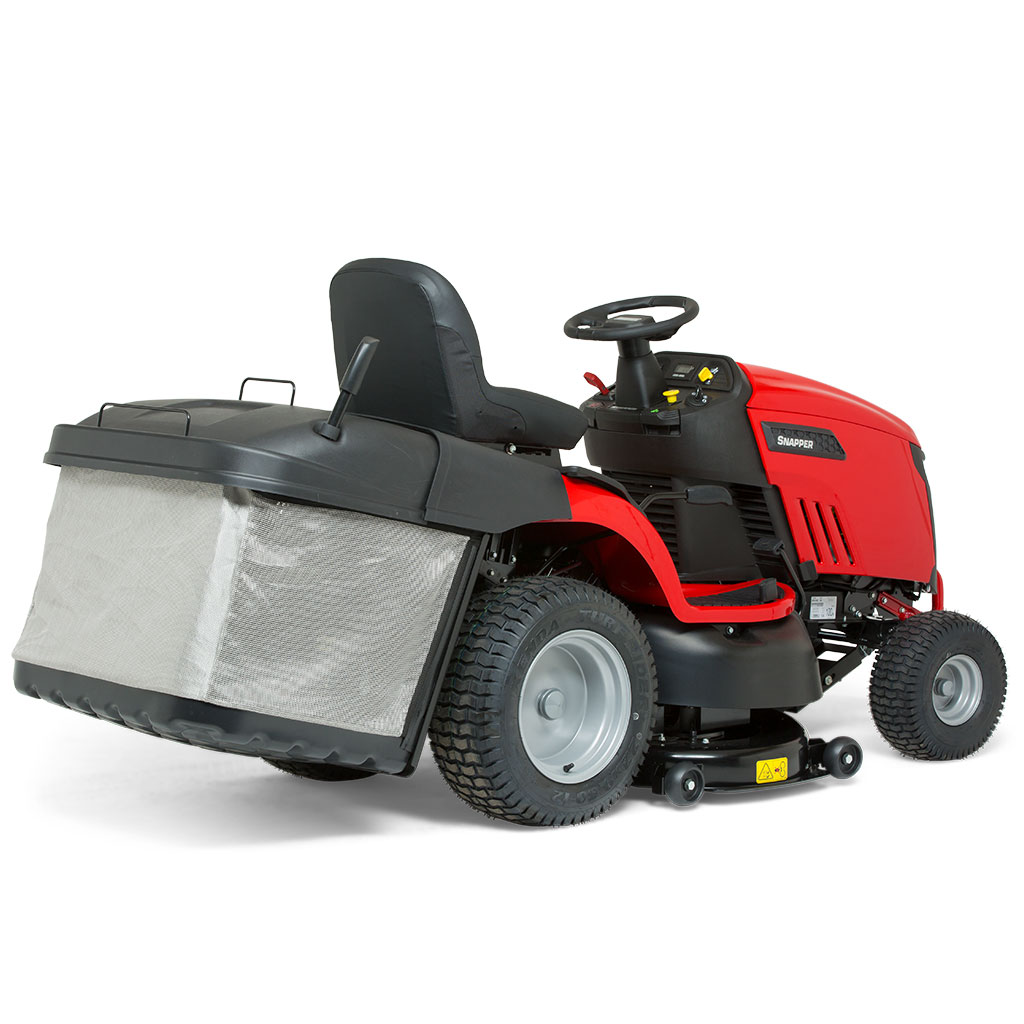

RPX310 Rear Discharge Tractor

Click and drag image to rotate.

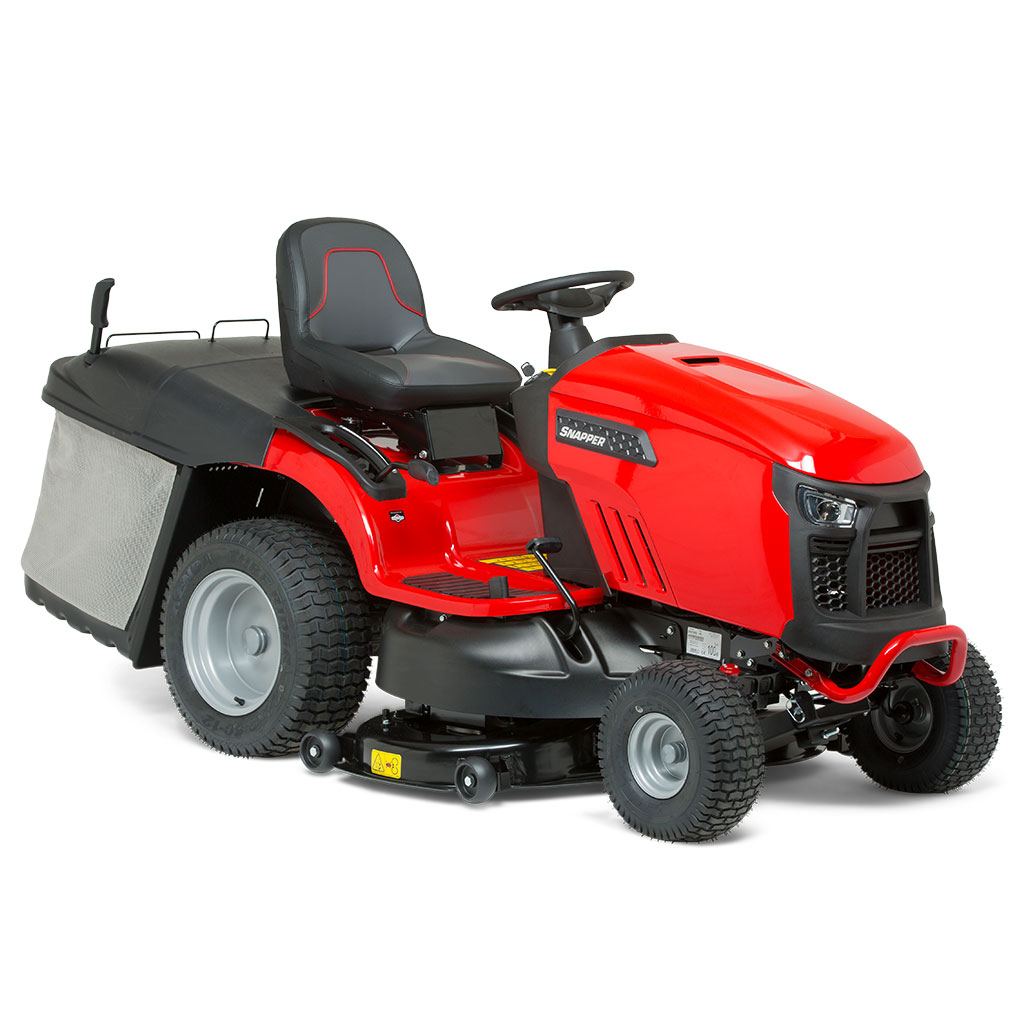

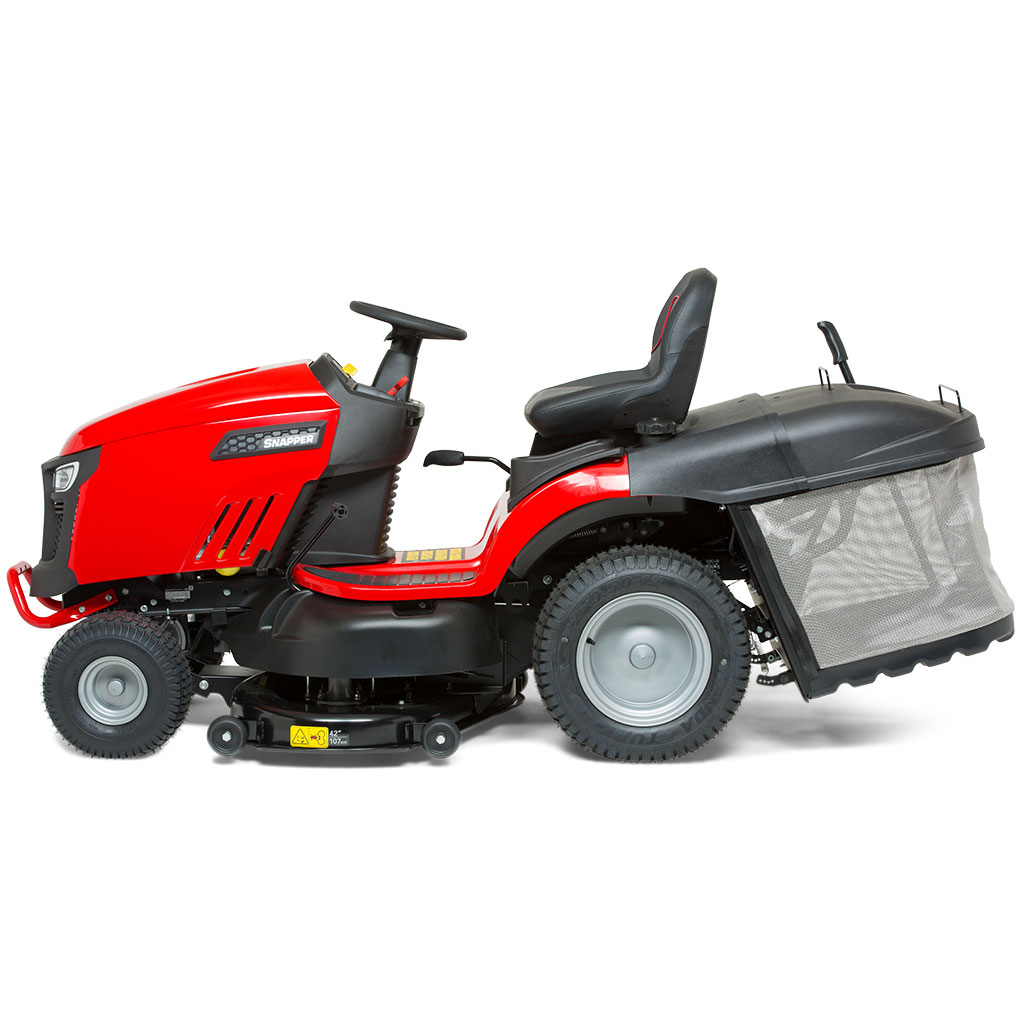

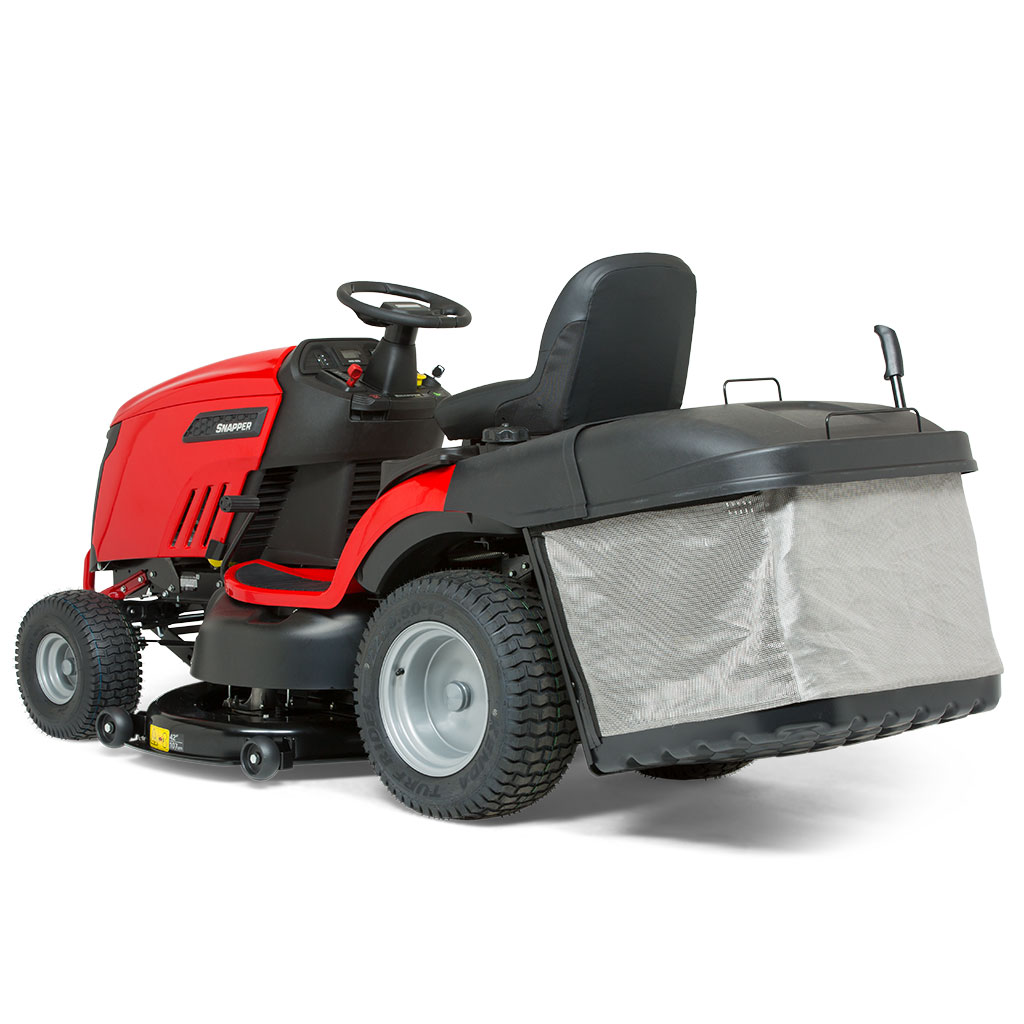

RPX310 Rear Discharge Tractor

Model Number : 2691705

The new RPX rear discharge lawn tractors have been launched with a number of upgrades including styling, hydrostatic transmission and high performance Briggs & Stratton® engines. A comfortable, mid-back seat offers great operator comfort. The Tuff-Torq® hydrostatic transmission delivers a smooth ride for improved user experience.

The stamped steel mower deck is frame hung and offers a 42"/ 107 cm cutting width. The dashboard features hour and fuel meters, cruise control and a maintenance reminder, making this powerful sit on mower easy to use and maintain. And after mowing, you can easily clean the mower deck by connecting your garden hose to the wash port.

Click and drag image to rotate.

Features

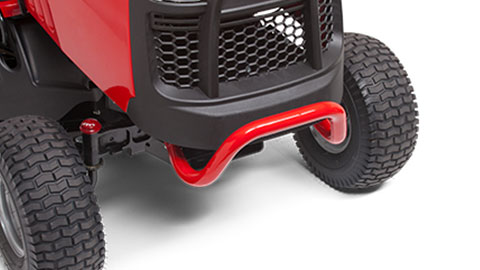

Steel hood styling & front bumper

Quality is key. Our hoods are made out of steel and have durable steel hinges. The steel front bumper adds extra durability to the front-end of the tractor.

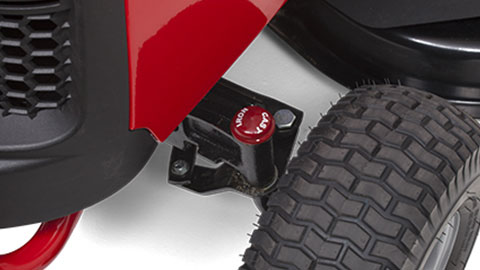

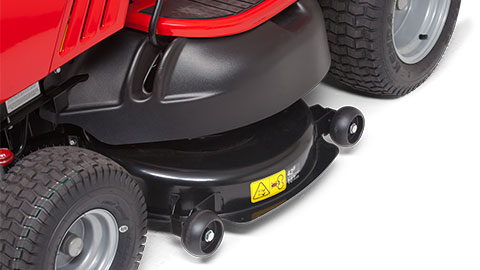

Frame hung mower deck with wash port

And four support wheels to protect the mower deck on uneven terrain. Easily clean the deck after mowing by connecting your garden hose with the wash port.

The right cutting height

Cut grass to just the right height by choosing from 7 positions between 4,5 and 9,0 cm.

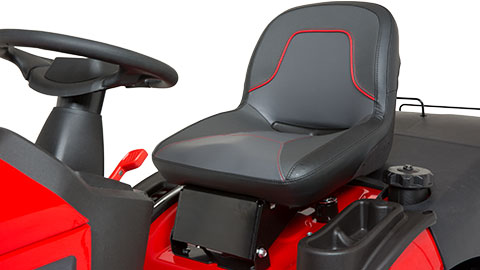

High comfort seat

Adjustable and comfortable mid-back premium seat.

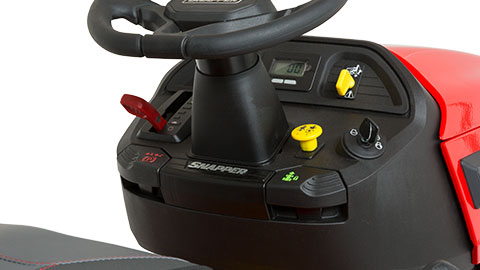

User-friendly dashboard

Including cruise control, hour meter, clock, maintenance monitor, fuel meter and RMO switch.

Cast-iron front axle

The cast-iron pivoting front axle smoothly tracks over rough terrain for an even cut. The front wheels have ball bearings.

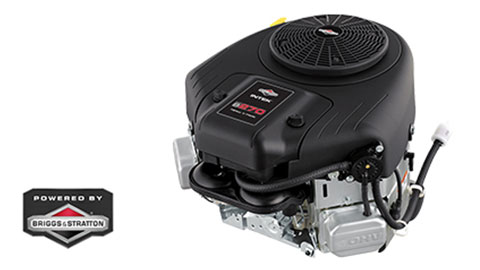

Powered by Briggs & Stratton

Equipped with a reliable Briggs & Stratton engine to keep your lawn tractor running for years and years to come.

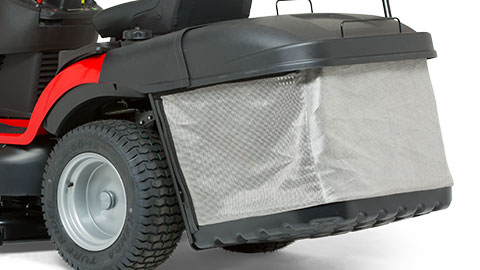

Large collector capacity

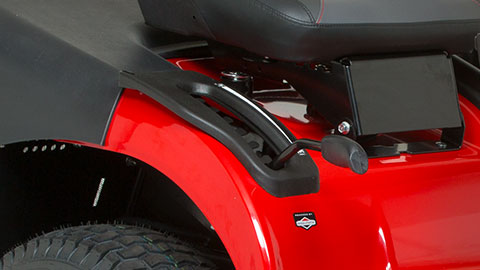

The 350 litre bag features an ergonomic lever to empty the bag without leaving your seat.

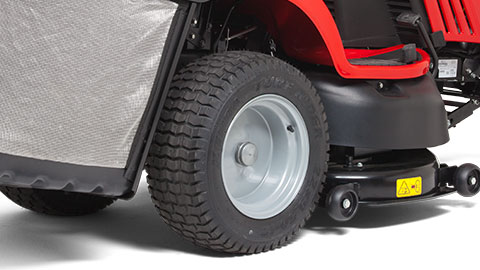

Large rear tyres

The large 22" tyres provide superior traction in order to protect your turf.

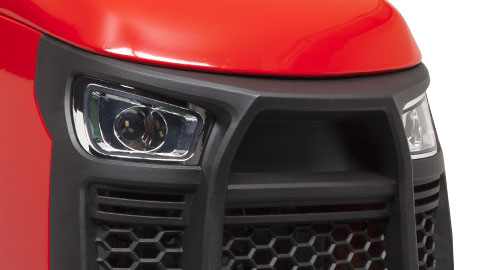

LED headlights

These powerful LED headlights light your path.

Durable Tuff Torq® K46 transmission

The Tuff-Torq® transmission offers a hydrostatic drive and allows you to operate the tractor at higher speeds.

Specifications

Model Number

2691705

Engine Make

Briggs & Stratton

Engine Model

8270 PXi V-Twin OHV

Cylinders

Starting System

Electric Start

Fuel Capacity (l)

Drive Type

Tuff Torq^® K46

Forward Speed (km/h)

0 - 7,7

Reverse Speed (km/h)

0 - 4,5

Configuration

Rear Wheel Drive

Front Axle

Cast Iron

Tyres Front (in)

15 x 6

Tyres Rear (in)

22 x 9,5

Turning Radius (cm)

Mower Deck Lift

Mechanical

Blade Engagement

Electric

Front Suspension

Rear Suspension

Cutting Width (cm)

107

Mower Deck

Frame Hung

Deck Support Wheels

Mower Configuration

Rear Discharge

Collector Capacity (l)

350.0

Height of Cut Range (mm)

45 - 90

Height of Cut Positions

Blades

Seat

Premium Mid-Back

Wash Port

Yes

Mulch Kit/Plug

Standard

Cruise Control

Yes

Length (cm)

260

Width* (cm)

114

Height (cm)

123

Wheel Base (cm)

125

Weight (kg)

291

Warranty**

3-Year Limited

^{* Measured with deflector down.
** See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.}

Accessories

Rear Deflector Chute

Part number: 1688033

Tyre Chains

For use on slippery surfaces for 22" x 9,5" tyres.

Part number: 1695092SM

Mulch Kit

Converts easily to a mulching deck.

Part Number: 885959YP
