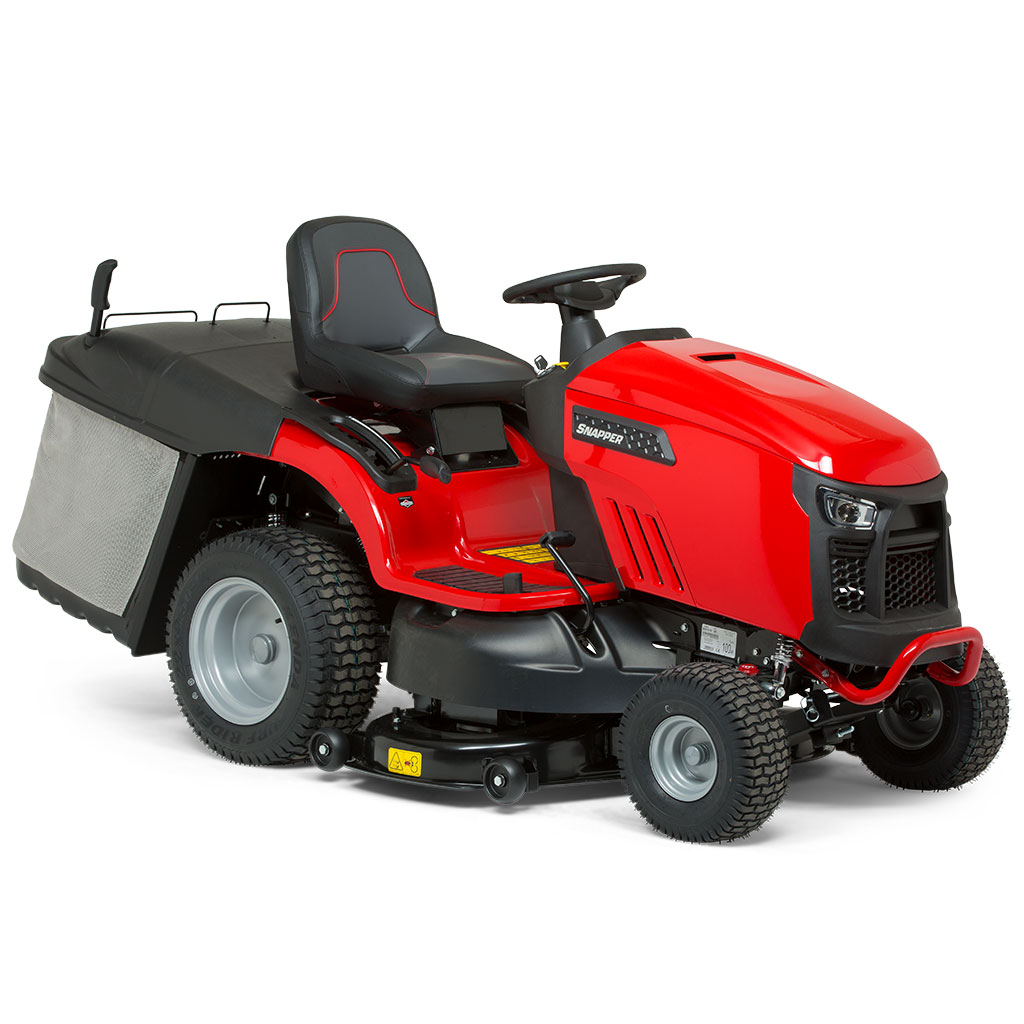

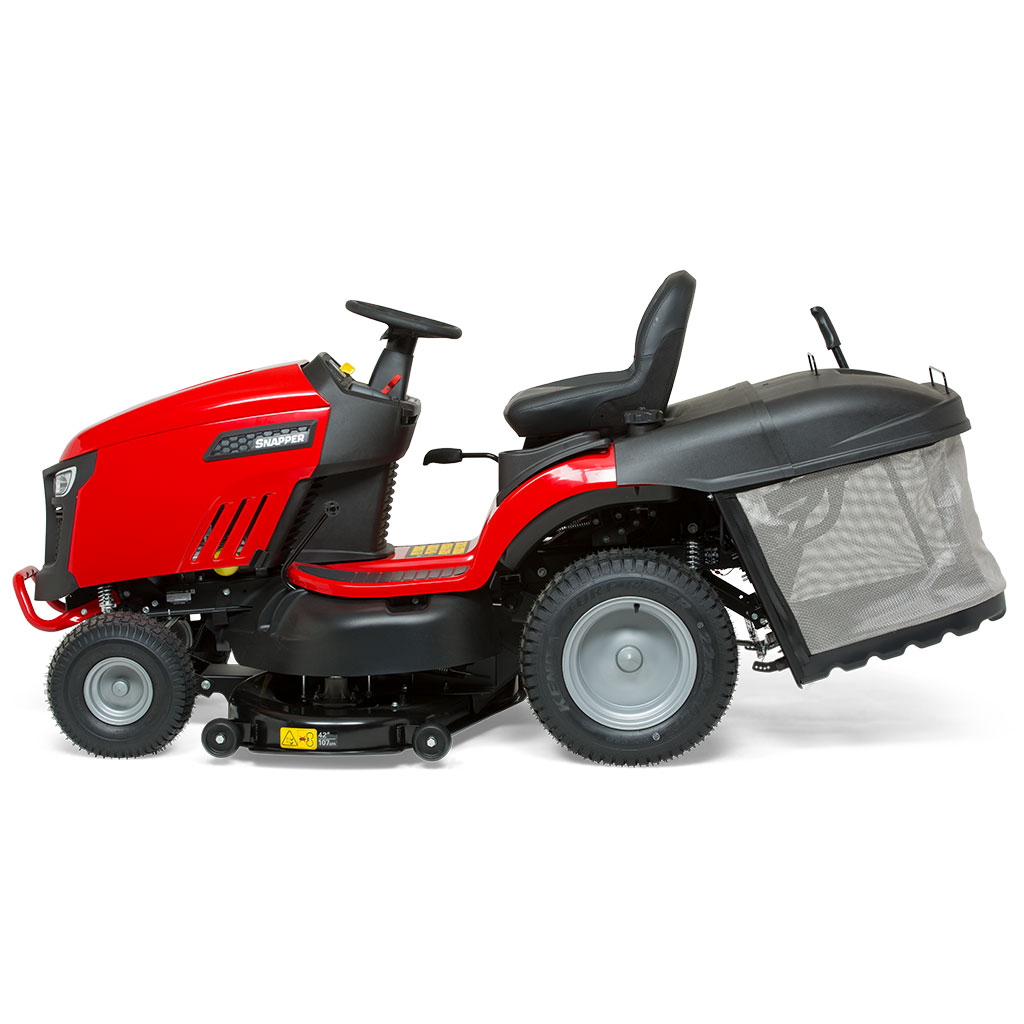

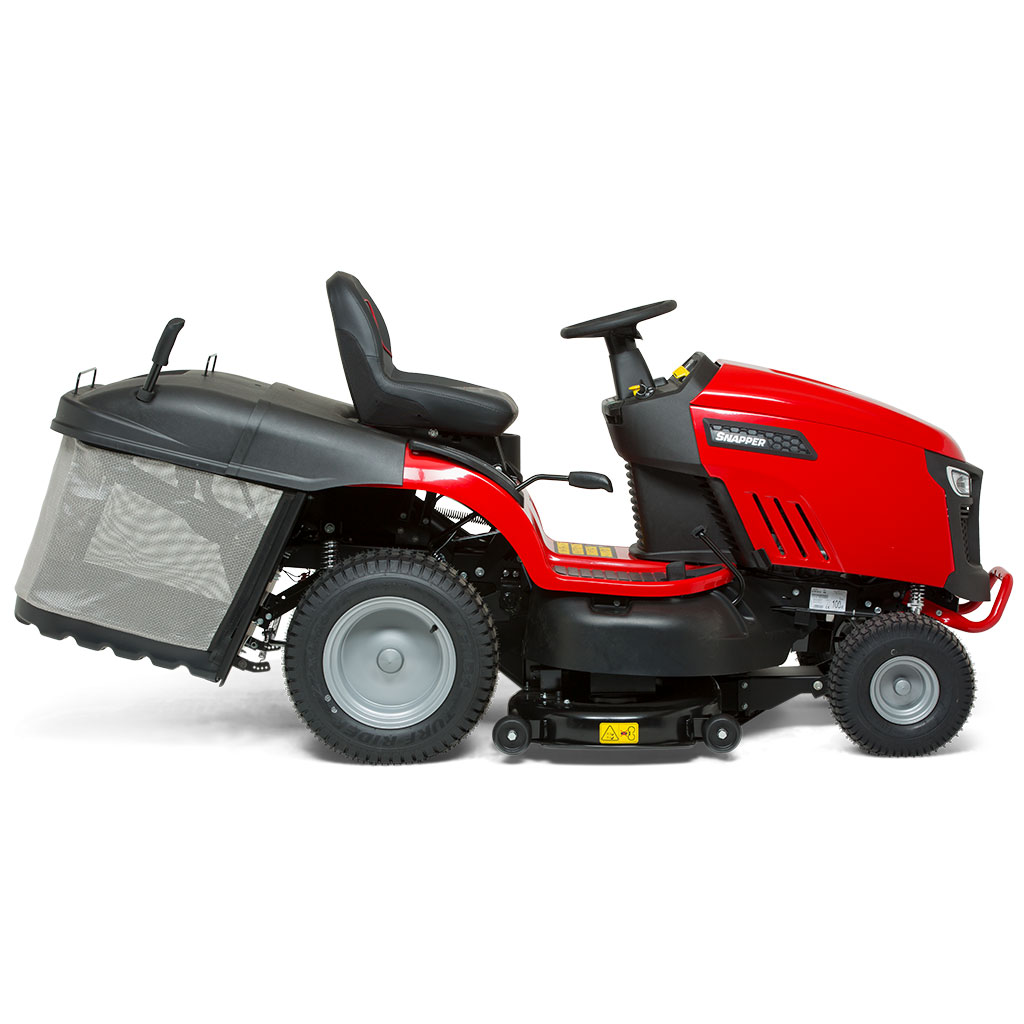

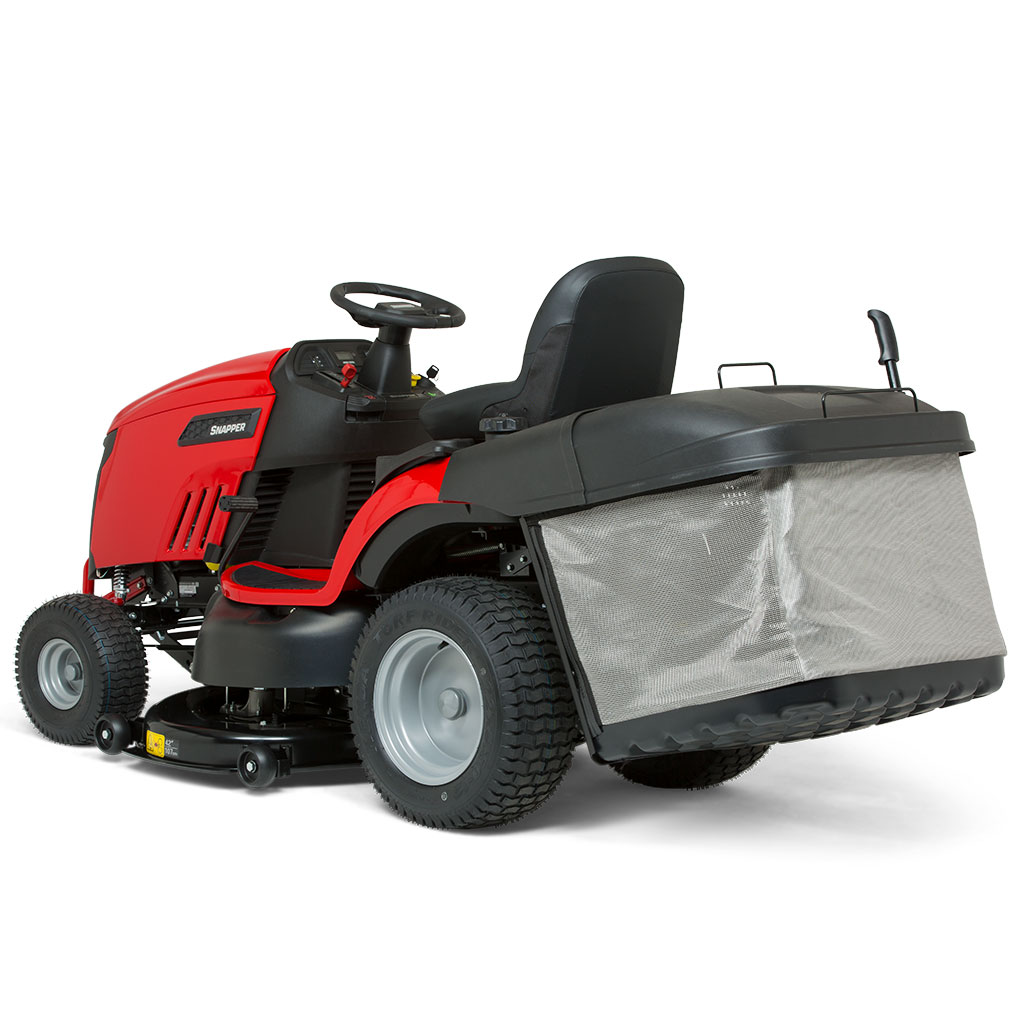

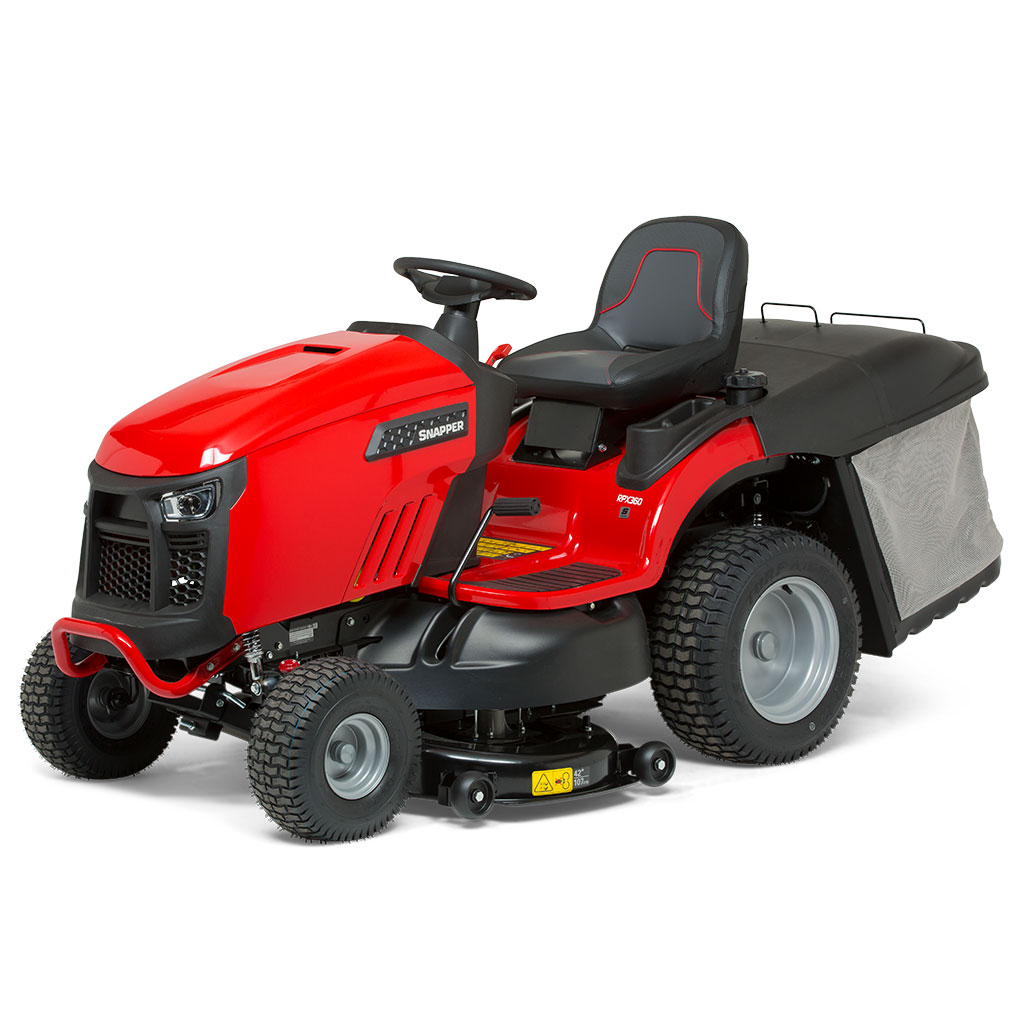

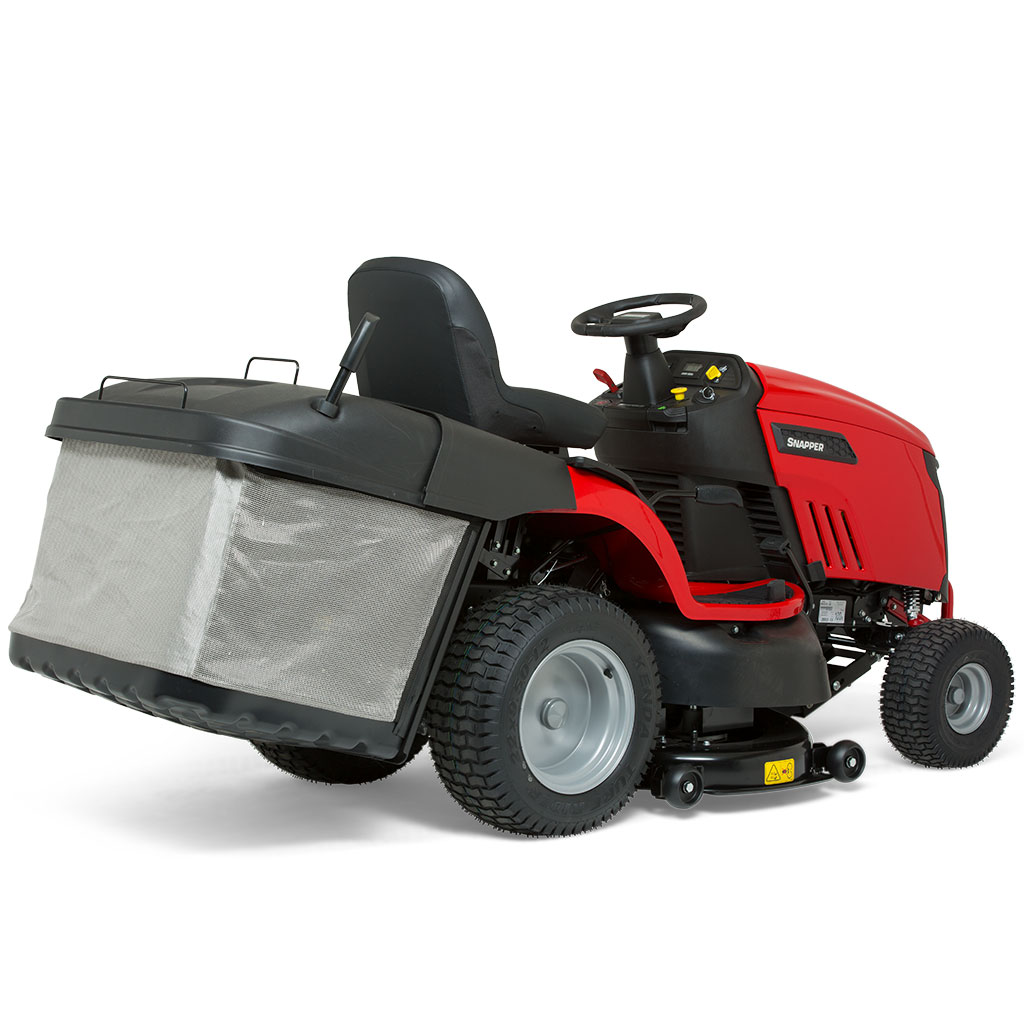

RPX360 Rear Discharge Tractor

RPX360 Rear Discharge Tractor

The RPX360 delivers top of the range performance and comfort. This rear discharge lawn tractor is powerful, easy to control and intelligent. Equipped with the patented Suspension System™, it delivers you a comfortable and smooth driving experience through front and rear springs.

The stamped steel mower deck is frame hung and offers a 42"/ 107 cm cutting width. Equipped with a user-friendly dashboard including hour and fuel meters, cruise control, RMO switch and a maintenance reminder, this hardworking sit on mower is easy to use and gives you all the comfort you need. And after mowing, you can easily clean the mower deck by connecting your garden hose to the wash port.

Features

Steel hood styling & front bumper

Quality is key. Our hoods are made out of steel and have durable steel hinges. The steel front bumper adds extra durability to the front-end of the tractor.

Frame hung mower deck with wash port

And four support wheels to protect the mower deck on uneven terrain. Easily clean the deck after mowing by connecting your garden hose with the wash port.

The right cutting height

Cut grass to just the right height by choosing from 7 positions between 4,5 and 9,0 cm.

Suspension system™

Front and rear suspension springs provide all-round comfort and the smoothest driving experience. Only on the RPX360.

High comfort seat

Adjustable and comfortable mid-back premium seat.

User-friendly dashboard

Including cruise control, hour meter, clock, maintenance monitor, fuel meter and RMO switch.

Cast-iron front axle

The cast-iron pivoting front axle smoothly tracks over rough terrain for an even cut. The front wheels have ball bearings.

Powered by Briggs & Stratton

Equipped with a reliable Briggs & Stratton engine to keep your lawn tractor running for years and years to come.

Large collector capacity

The 350 litre bag features an ergonomic lever to empty the bag without leaving your seat.

Large rear tyres

The large 22" tyres provide superior traction in order to protect your turf.

LED headlights

These powerful LED headlights light your path.

Durable Tuff Torq® K46 transmission

The Tuff-Torq® transmission offers a hydrostatic drive and allows you to operate the tractor at higher speeds.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
1691706
Engine Make
Briggs & Stratton
Engine Model
Professional Series™ 8270 V-Twin OHV
Cylinders
2
Starting System
Electric Start
Fuel Capacity (l)
11
Drive Type
Tuff Torq® K46
Forward Speed (km/h)
0 - 7,7
Reverse Speed (km/h)
0 - 4,5
Configuration
Rear Wheel Drive
Front Axle
Cast Iron
Tyres Front (in)
15 x 6
Tyres Rear (in)
22 x 9,5
Turning Radius (cm)
36
Mower Deck Lift
Mechanical
Blade Engagement
Electric
Front Suspension
Yes
Rear Suspension
Yes
Cutting Width (cm)
107
Mower Deck
Frame Hung
Deck Support Wheels
4
Mower Configuration
Rear Discharge
Collector Capacity (l)
350
Height of Cut Range (mm)
45 - 90
Height of Cut Positions
7
Blades
2
Seat
Premium Mid-Back
Wash Port
Yes
Mulch Kit/Plug
Standard
Cruise Control
Yes
Length (cm)
260
Width* (cm)
114
Height (cm)
123
Wheel Base (cm)
125
Weight (kg)
291
Warranty**
3-Year Limited

* Measured with deflector down.
** See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

Accessories

Rear Deflector Chute

Part number: 1688033

Tyre Chains

For use on slippery surfaces for 22" x 9,5" tyres.

Part number: 1695092SM

Mulch Kit

Converts easily to a mulching deck.

Part Number: 885959YP
