SPX110 Side Discharge Tractor

SPX110 Side Discharge Tractor

The SPX side discharge lawn tractors are stylish and functional. They offer an enhanced mowing experience for gardeners with larger lawns. Powered by Briggs & Stratton engines, the SPX™ range provides superior cutting and handling under a variety of mowing conditions.

Built with a 42"/ 107 cm frame hung stamped steel deck, this lawn tractor is suitable for most gardens. The foot operated hydrostatic transmission allows you to drive with speeds up to 7,7 km/h. You can even set it with the cruise control.

Tough gauge wheels are fitted on all four corners of the mowing deck offering additional protection. The durable pivoting cast iron front axle provides the SPX riding mower with an excellent turning radius of 36 cm, which will make short work of manoeuvering around complex gardens.

Features

Rigid steel mowing deck with wash port

42"/ 107 cm frame hung steel deck with four support wheels to protect the mower deck on uneven terrain. Easily clean the deck after mowing by connecting your garden hose with the wash port.

The right cutting height

Cut grass to just the right height by choosing from 7 positions between 3,8 and 10,2 cm.

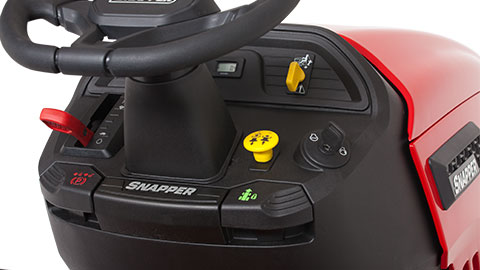

Ergonomic dashboard

With cruise control and RMO (Reverse Mow Option) switch.

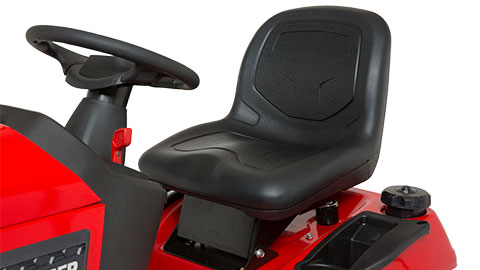

Comfortable mid-back seat

Adjustable in 9 positions.

Cast-iron front axle

The cast-iron pivoting front axle smoothly tracks over rough terrain for an even cut.

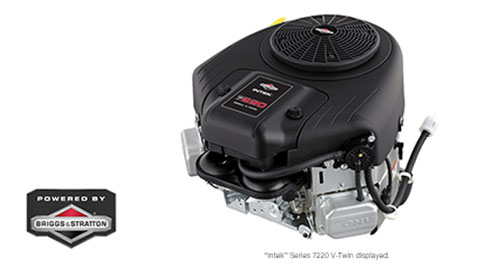

Powered by Briggs & Stratton

Equipped with a reliable Briggs & Stratton engine to keep your lawn tractor running for years and years to come.

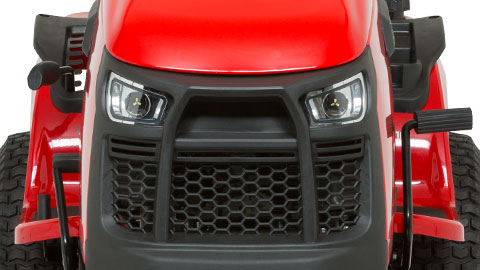

LED headlights

These powerful LED headlights light your path.

Durable Tuff Torq® K46 transmission

The Tuff-Torq® transmission offers a hydrostatic drive and allows you to operate the tractor at higher speeds.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
2691487
Engine Make
Briggs & Stratton
Engine Model
Intek™ Series 7200 V-Twin OHV
Cylinders
2
Starting System
Electric Start
Fuel Capacity (l)
15
Drive Type
Tuff Torq® K46
Forward Speed (km/h)
0 - 7,7
Reverse Speed (km/h)
0 - 5,2
Configuration
Rear Wheel Drive
Front Axle
Cast Iron
Tyres Front (in)
15 x 6
Tyres Rear (in)
20 x 8
Turning Radius (cm)
36
Mower Deck Lift
Mechanical
Blade Engagement
Electric
Front Suspension
-
Rear Suspension
-
Cutting Width (cm)
107
Mower Deck
Frame Hung
Deck Support Wheels
4
Mower Configuration
Side Discharge
Height of Cut Range (mm)
38 - 102
Height of Cut Positions
7
Blades
2
Seat
Mid-Back
Wash Port
Yes
Mulch Kit/Plug
Optional
Cruise Control
Yes
Length (cm)
185
Width* (cm)
134
Height (cm)
111
Wheel Base (cm)
125
Weight (kg)
211
Warranty**
3-Year Limited

* Measured with deflector down.
** See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

Model Number
2691487
SPX100
2691487
Engine Make
Briggs & Stratton
Briggs & Stratton
Briggs & Stratton
Engine Model
Intek™ Series 7200 V-Twin OHV
Intek™ Series 4175 OHV, AVS®
Intek™ Series 7200 V-Twin OHV
Cylinders
2
1
2
Starting System
Electric Start
Electric Start
Electric Start
Fuel Capacity (l)
15
13,2
15
Drive Type
Tuff Torq® K46
Hydro-Gear® T2
Tuff Torq® K46
Forward Speed (km/h)
0 - 7,7
0 - 8,9
0 - 7,7
Reverse Speed (km/h)
0 - 5,2
0 - 5,3
0 - 5,2
Tyres Front (in)
15 x 6
15 x 6
15 x 6
Tyres Rear (in)
20 x 8
20 x 8
20 x 8
Turning Radius (cm)
36
36
36
Mower Deck Lift
Mechanical
Manual / -
Mechanical
Cutting Width (cm)
107
107
107
Mower Deck
Frame Hung
Frame Hung
Frame Hung
Height of Cut Range (mm)
38 - 102
45 - 85
38 - 102
Height of Cut Positions
7
7
7
Blades
2
2
2
Length (cm)
185
177
185
Width* (cm)
134
136
134
Height (cm)
111
112
111
Wheel Base (cm)
125
127
125
Weight (kg)
211
201
211
Warranty**
3-Year Limited
3-Year Limited
3-Year Limited
Frame
Steel
Steel
Front Gauge Wheels
N/A
N/A
Technology
AVS®
AVS®
Configuration
Rear Wheel Drive
Rear Wheel Drive
Front Axle
Cast Iron
Cast Iron
Blade Engagement
Electric
Electric
Front Suspension
-
-
Rear Suspension
-
-
Deck Support Wheels
4
4
Mower Configuration
Side Discharge
Side Discharge
Seat
Mid-Back
Mid-Back
Wash Port
Yes
Yes
Mulch Kit/Plug
Optional
Optional
Cruise Control
Yes
Yes

* Measured with deflector down.
** See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

Accessories

Mulch Kit

Converts easily to a mulching deck.

Part number: 1696374YP

Twin Bag Collector

Part number: 1695592A

Weight Carrier, Rear

Part number: 1694922SM

Weight 33 lbs (15 kg)

Part number: 1691319SM

Dozer Blade 42" / 107 cm

Requires weight carrier and weights.

Part number: 1696092

Front Bumper

Steel protection for extra durability to the front-end of the tractor.

Part number: 1687939
