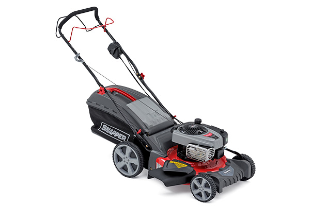

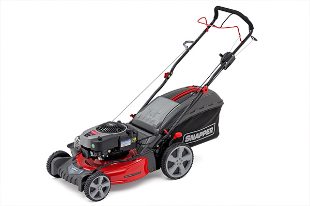

NX-90V Series Lawn Mower

The NX-90V has a hard-wearing steel deck and a  large 28 cm rear wheel to improve traction and manoeuvrability. The Briggs & Stratton 875EX Series engine is equipped with a ReadyStart® system for quick and easy starting.

In addition to the NX Series features the NX-90V a high-speed transmission. With speeds up to 5,5 km/h you will finish mowing your lawn faster!

snapper /

Product Details

High rear wheels

The high rear wheels offer premium traction and manoeuvrabilty. They perform better on uneven terrain compared to small wheels.

Strong steel decks

The NX series have durable powder coated stand steel decks.

Hard top collection boxes

NX-60, 80 and 90 models feature hard top boxes with a carry handle.

Six height of cut options

The mower deck features 6 height-of-cut positions that can be set with a single point lever between 28 and 92 mm.

NX-90V Series Lawn Mower
Engine Brand Briggs & Stratton
Engine Model 875EX Series™ OHV
Displacement (cc) 190
Starting System Recoil, ReadyStart®
Fuel Capacity (l) 1
Cutting Width (cm) 53
Deck Material Steel
Height-of-Cut (mm) 28 - 92
Height-of-Cut Adjustment 1 Point
Blade Type High Lift
Wheel Size Front (cm) 20
Wheel Size Rear (cm) 28
Bearing Type Front/Rear Ball Bearing
Transmission Style Self Propelled
Drive Type Variable Speed
Forward Speed (km/h) 2,8 - 5,5
Handle Type Ergo, full fold, foam
Bag Type Soft textile with hard top
Bag Capacity (l) 70
Discharge Rear & Side discharge
Mulching Option Standard
Wash Port Yes
Weight (kg) 38
Residential Warranty (Product)* 2-Year Limited

* See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
