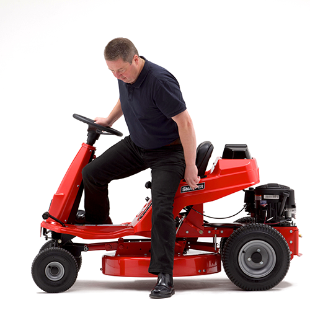

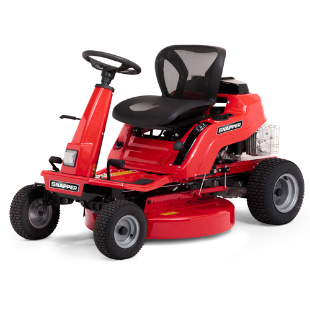

REX Rear Engine Rider

The small but perfectly formed Snapper REX rear engine riders are equipped with OHV, AVS® (Anti Vibration System) single cylinder engines. Each has a tough steel frame chassis, welded steel or cast-iron front axles and a convenient eight litre fuel capacity.

FIND A DEALER
snapper /

Product Details

Variable speed disc drive transmission

Hi Vac® mowing deck

Tool-less changeover from mulching to side discharge

REX Rear Engine Rider
Engine Brand Briggs & Stratton
Engine Model Intek™ Series 4195
Number of Cylinders 1
Starting Type Electric Start
Fuel Tank Capacity (litre) 8
Drive Type Hydrostatic
Ground Speed - Fwd (km/h) 0 - 6,8
Ground Speed - Rev (km/h) 0 - 2,7
Frame Steel
Front Tyres (in) 13 x 5
Rear Tyres (in) 16 x 6,5
Turning Radius (cm) 51
Deck / Attachment Lift Manual
Mower Deck Hi Vac® Frame Hung
Height-of-Cut (mm) 38 - 102
Height-of-Cut Adjustment 6
Cutting Width (cm) 84
Number of Blades 1
Mulching Yes
Assembled Length (cm) 168
Assembled Width (cm) 94
Assembled Height (cm) 109
Wheel Base (cm) 124
Assembled Weight (kg) 181
Residential Warranty (Product) † 3-Year Limited

† See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.
