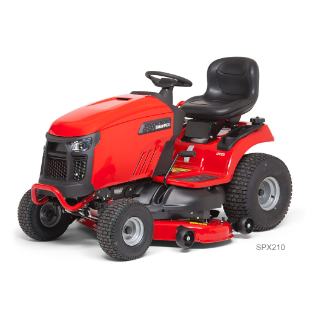

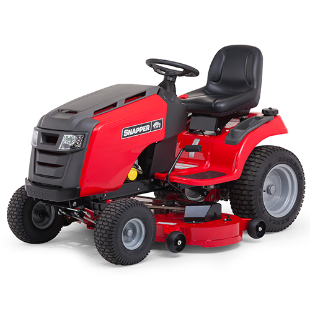

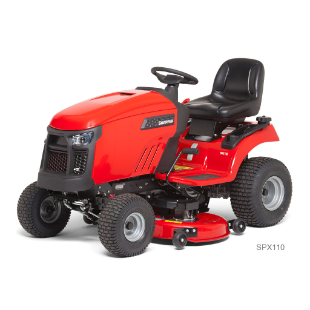

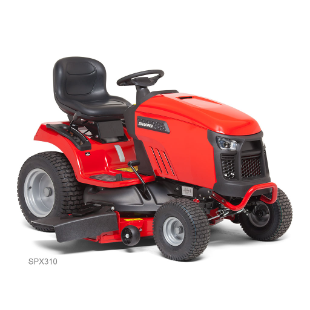

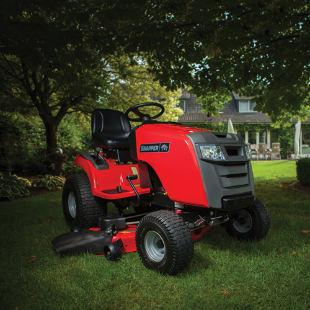

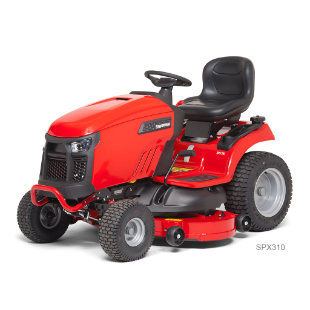

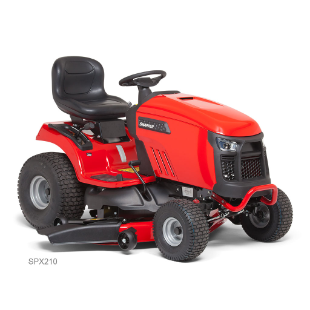

SPX™ Side Discharge Tractors

The SPX is stylish and offers an enhanced mowing experience for gardeners with larger lawns. Featuring powerful Briggs & Stratton engines, the SPX™ range provides superior cutting and handling under a variety of mowing conditions. Tough gauge wheels are fitted on all four corners of the mowing deck offering additional protection. The durable pivoting cast iron front axle provides the SPX tractor with an excellent turning radius of 36 cm, which will make short work of manoeuvering around complex gardens. You can choose between the 107, 117 and 122 cm steel decks, suitable for most gardens.

FIND A DEALER
snapper /

Product Details

Rigid steel mowing deck with wash port

Four support wheels protect the mower deck on uneven terrain. Choose between 107, 117 or 122 cm cutting width.

Front bumper protection

The steel front bumper adds extra durability to the front-end of the tractor. Optional on SPX110.

The right cutting height

Cut grass to just the right height by choosing from 7 positions between 3,8 and 10,2 cm.

Ergonomic dashboard

With cruise control and RMO (Reverse Mow Option) switch.

Comfortable mid-back seat

Adjustable in 9 positions.

Durable Tuff Torq® K46 transmission

The Tuff-Torq® transmission offers a hydrostatic drive and allows you to operate the tractor at higher speeds.

Cast-iron front axle

The cast-iron pivoting front axle smoothly tracks over rough terrain for an even cut.

Powered by Briggs & Stratton

Equipped with a reliable Briggs & Stratton engine to keep your mower running for years and years to come.

LED headlights

These powerful LED headlights light your path.

Engine Make Briggs & Stratton
Engine Model Intek™ Series 7200 V-Twin OHV
Cylinders 2
Starting System Electric Start
Fuel Capacity (l) 15
Drive Type Tuff Torq® K46
Forward Speed (km/h) 0 - 7,7
Reverse Speed (km/h) 0 - 5,2
Configuration Rear Wheel Drive
Front Axle Cast Iron
Tyres Front (in) 15 x 6
Tyres Rear (in) 20 x 8
Turning Radius (cm) 36
Mower Deck Lift Mechanical
Blade Engagement Electric
Front Suspension -
Rear Suspension -
Cutting Width (cm) 107
Mower Deck Frame Hung
Deck Support Wheels Yes
Height of Cut Range (mm) 38 - 102
Height of Cut Positions 7
Blades 2
Seat 38 cm Mid-Back
Wash Port Yes
Mulching Optional
Cruise Control Yes
Length (cm) 185
Width* (cm) 134
Height (cm) 111
Wheel Base (cm) 125
Weight (kg) 211
Warranty** 3-Year Limited

* See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

Engine Make Briggs & Stratton
Engine Model Intek™ Series 7220 V-Twin OHV
Cylinders 2
Starting System Electric Start
Fuel Capacity (l) 15
Drive Type Tuff Torq® K46
Forward Speed (km/h) 0 - 6,9
Reverse Speed (km/h) 0 - 4,4
Configuration Rear Wheel Drive
Front Axle Cast Iron
Tyres Front (in) 15 x 6
Tyres Rear (in) 22 x 10
Turning Radius (cm) 36
Mower Deck Lift Mechanical
Blade Engagement Electric
Front Suspension -
Rear Suspension -
Cutting Width (cm) 117
Mower Deck Frame Hung
Deck Support Wheels Yes
Height of Cut Range (mm) 38 - 102
Height of Cut Positions 7
Blades 3
Seat 38 cm Mid-Back Contoured
Wash Port Yes
Mulching Optional
Cruise Control Yes
Length (cm) 185
Width* (cm) 149
Height (cm) 117
Wheel Base (cm) 125
Weight (kg) 223
Warranty** 3-Year Limited

* See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

Engine Make Briggs & Stratton
Engine Model Professional Series™ 8230 V-Twin OHV
Cylinders 2
Starting System Electric Start
Fuel Capacity (l) 15
Drive Type Tuff Torq® K46
Forward Speed (km/h) 0 - 8,2
Reverse Speed (km/h) 0 - 5,4
Configuration Rear Wheel Drive
Front Axle Cast Iron
Tyres Front (in) 15 x 6
Tyres Rear (in) 22 x 9,5
Turning Radius (cm) 36
Mower Deck Lift Mechanical
Blade Engagement Electric
Front Suspension -
Rear Suspension -
Cutting Width (cm) 122
Mower Deck Frame Hung - Fabricated
Deck Support Wheels Yes
Height of Cut Range (mm) 38 - 102
Height of Cut Positions 7
Blades 3
Seat 38 cm Mid-Back Contoured
Wash Port Yes
Mulching Optional
Cruise Control Yes
Length (cm) 185
Width* (cm) 150
Height (cm) 117
Wheel Base (cm) 125
Weight (kg) 250
Warranty** 3-Year Limited

* See operator's manual or dealer for complete warranty details. Length of engine warranty coverage varies by manufacturer.

Mulch Kit

Converts easily to a mulching deck. Available for SPX110 (1696374YP), SPX210 (1696910) and SPX310 (1696909). The mulch kit for SPX210 and SPX310 includes Eliminator® blades*.

Twin/Triple Bag Collector

Twin bag collector for the SPX110 (1696073); triple bag collector for SPX210 (1695776) and SPX310 (1696462). Triple bag collector requires turbo fan.

Turbo Fan

Available for SPX210 (1695642) and SPX310 (1696750).

Weight Carrier, Rear

Available for all SPX side discharge tractor models (1694922SM). SPX210 and SPX310 require 33 lbs/15 kg weight.

Weight 33 lbs (15 kg)

Available for SPX110, SPX210 and SPX310 (1691319SM).

Wheel Weights (needs 2)

Only available for SPX210 (1690555SM).

Dozer Blade 42"

Dozer blade for SPX110, SPX210 and SPX310 (1696092). Requires weight carrier and weights for all models, plus tyre chains for SPX210 and SPX310.

Snow Thrower 42"

Single stage 42"/107 cm snow thrower for SPX210 and SPX310 (1696423). Requires weight carrier, weights and tyre chains.

Tyre Chains

Chains for SPX110's 20" x 8" tyres (1690163SM) and SPX210's / SPX310's 22" x 10" tyres (1695092SM). For use on slippery surfaces.

Front Bumper

Steel protection for extra durability to the front-end of the tractor. Available as accessory for SPX110 (1687939); standard on SPX210 and SPX310.

* Eliminator® is a registered trademark of Fisher Barton.
