SW45
SW45
The SW45 gives commercial landscapers another option for mowing those hard-to-access areas. Get work done quicker with ground speeds up to 7 mph and a five-gallon fuel tank for longer run times.
Click and drag image to rotate.
48" +
Cutting Width
23.5
Top Gross Power*
7 MPH
Max Fwd Speed
2-Year
Limited Warranty†
Features
Specifications
At least one product must be displayed. Please select another option to remove this product
US MSRP ^
$7,499.00
CAN MSRP ^
$9,799.00
Engine Brand
Kawasaki FX651V
HP (gross) *
20.5**
Displacement (cc)
726
Number of Cylinders
2
Fuel Tank Capacity (gal)
5

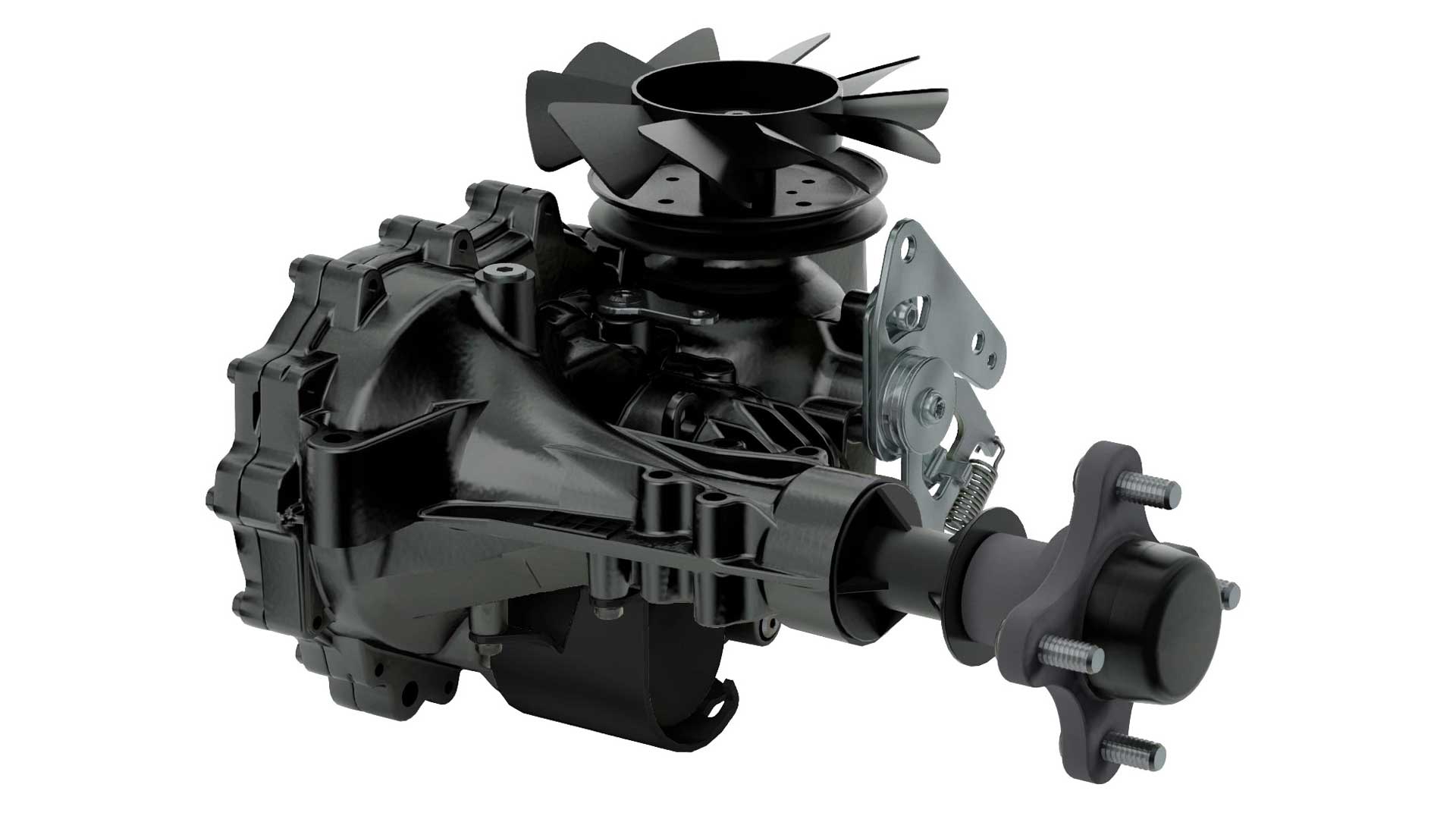

Transmission
Hydro-Gear® ZT-3400® with dual external oil coolers, steel cut gears and 1.25" shafts
Ground Speed-Fwd (mph)
0 - 7
Ground Speed-Rev (mph)
0 - 3
Cutting Width (in)
48
Height-of-Cut (in)
1.5 - 5
Deck Construction
10-Gauge, fabricated
Spindles
Cast-iron
Drive Axles
1
Drive Tires (in)
20 x 7-10c
Caster Tires (in)
11 x 4-5
Overall Length (in)
CC: 75"
Overall Width (in.) deflector down / deflector up (model)
62.5 / 49.5
Dry Weight (lbs)
809
Instrumentation
Dual-function hour meter, speed indicator

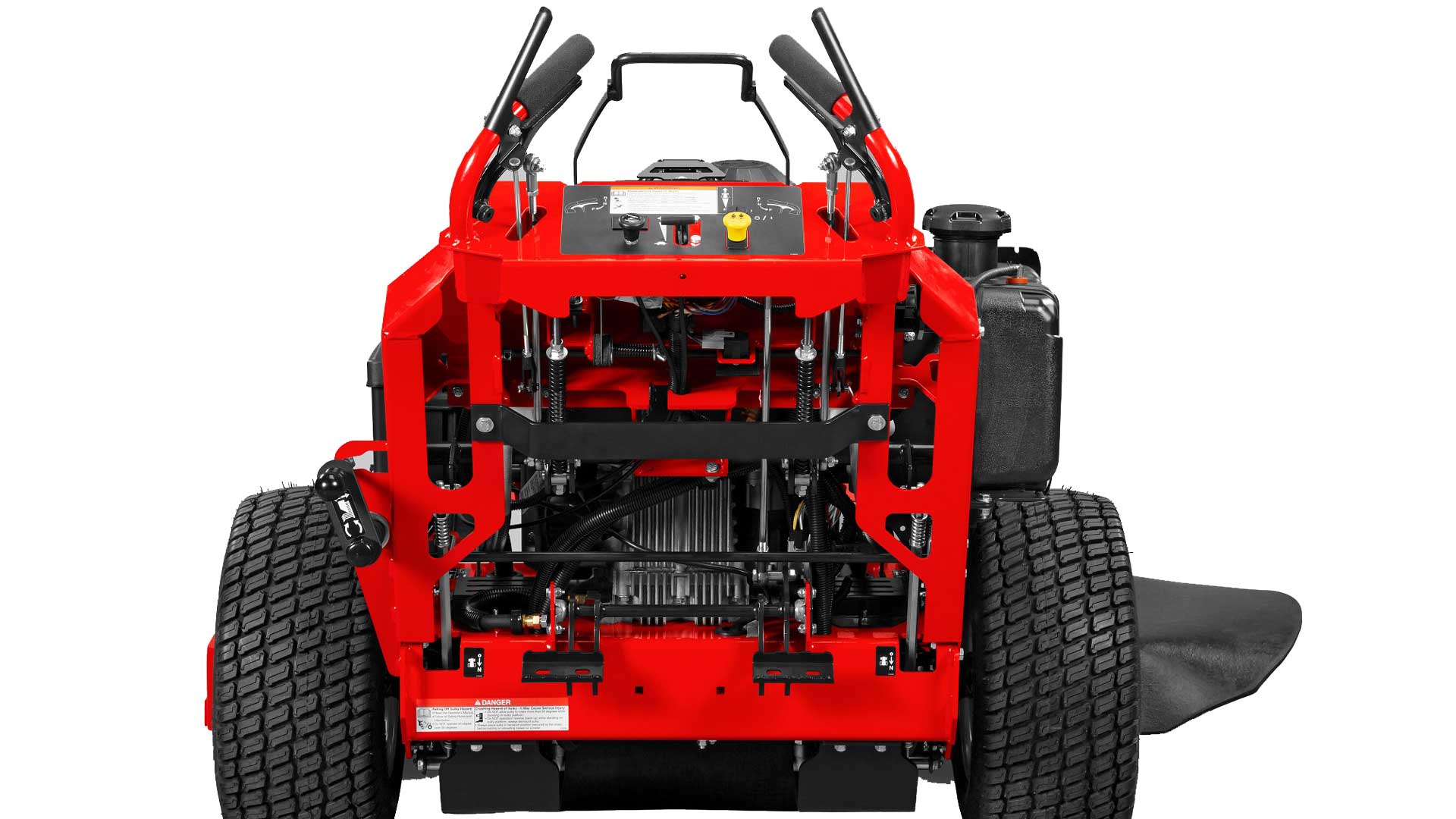

Controls/Safety Group
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Parking Brake/Safety Circuit
Hand operated internal transaxle
Warranty (Balance of Machine) **
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Warranty**
3-Year limited manufacturer's warranty
Marketing Limited Warranty
2-Year
Marketing Cutting Width
48" +
Marketing Ground Speed
7 MPH
Marketing Gross Torque
23.5
US MSRP ^
$7,799.00
CAN MSRP ^
$10,199.00
Engine Brand
Kawasaki FX651V
HP (gross) *
20.5**
Displacement (cc)
726
Number of Cylinders
2
Fuel Tank Capacity (gal)
5
Transmission
Hydro-Gear® ZT-3400® with dual external oil coolers, steel cut gears and 1.25" shafts
Ground Speed-Fwd (mph)
0 - 7
Ground Speed-Rev (mph)
0 - 3
Cutting Width (in)
52
Height-of-Cut (in)
1.5 - 5
Deck Construction
10-Gauge, fabricated
Spindles
Cast-iron
Drive Axles
1
Drive Tires (in)
20 x 8-10
Caster Tires (in)
11 x 4-5
Overall Length (in)
CC: 75"
Overall Width (in.) deflector down / deflector up (model)
67 / 57
Dry Weight (lbs)
814
Instrumentation
Dual-function hour meter, speed indicator
Controls/Safety Group
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Parking Brake/Safety Circuit
Hand operated internal transaxle brake
Warranty (Balance of Machine) **
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Warranty**
3-Year limited manufacturer's warranty
Marketing Limited Warranty
2-Year
Marketing Cutting Width
48" +
Marketing Ground Speed
7 MPH
Marketing Gross Torque
23.5
US MSRP ^
$8,399.00
CAN MSRP ^
$10,849.00
Engine Brand
Kawasaki FX730
HP (gross) *
23.5**
Displacement (cc)
726
Number of Cylinders
2
Fuel Tank Capacity (gal)
5
Transmission
Hydro-Gear® ZT-3400® with dual external oil coolers, steel cut gears and 1.25" shafts
Ground Speed-Fwd (mph)
0 - 7
Ground Speed-Rev (mph)
0 - 3
Cutting Width (in)
61
Height-of-Cut (in)
1.5 - 5
Deck Construction
10-Gauge, fabricated
Spindles
Cast-iron
Drive Axles
1
Drive Tires (in)
20 x 8-10
Caster Tires (in)
11 x 4-5
Overall Length (in)
CC: 75"
Overall Width (in.) deflector down / deflector up (model)
76.5 / 65
Dry Weight (lbs)
888
Instrumentation
Dual-function hour meter, speed indicator
Controls/Safety Group
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Parking Brake/Safety Circuit
Hand operated internal transaxle brake
Warranty (Balance of Machine) **
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Warranty**
3-Year limited manufacturer's warranty
Marketing Limited Warranty
2-Year
Marketing Cutting Width
48" +
Marketing Ground Speed
7 MPH
Marketing Gross Torque
23.5
US MSRP ^
$7,499.00
$7,799.00
$8,399.00
CAN MSRP ^
$9,799.00
$10,199.00
$10,849.00
Engine Brand
Kawasaki FX651V
Kawasaki FX651V
Kawasaki FX730
HP (gross) *
20.5**
20.5**
23.5**
Displacement (cc)
726
726
726
Number of Cylinders
2
2
2
Fuel Tank Capacity (gal)
5
5
5
Transmission
Hydro-Gear® ZT-3400® with dual external oil coolers, steel cut gears and 1.25" shafts
Hydro-Gear® ZT-3400® with dual external oil coolers, steel cut gears and 1.25" shafts
Hydro-Gear® ZT-3400® with dual external oil coolers, steel cut gears and 1.25" shafts
Ground Speed-Fwd (mph)
0 - 7
0 - 7
0 - 7
Ground Speed-Rev (mph)
0 - 3
0 - 3
0 - 3
Cutting Width (in)
48
52
61
Height-of-Cut (in)
1.5 - 5
1.5 - 5
1.5 - 5
Deck Construction
10-Gauge, fabricated
10-Gauge, fabricated
10-Gauge, fabricated
Spindles
Cast-iron
Cast-iron
Cast-iron
Drive Axles
1
1
1
Drive Tires (in)
20 x 7-10c
20 x 8-10
20 x 8-10
Caster Tires (in)
11 x 4-5
11 x 4-5
11 x 4-5
Overall Length (in)
CC: 75"
CC: 75"
CC: 75"
Overall Width (in.) deflector down / deflector up (model)
62.5 / 49.5
67 / 57
76.5 / 65
Dry Weight (lbs)
809
814
888
Instrumentation
Dual-function hour meter, speed indicator
Dual-function hour meter, speed indicator
Dual-function hour meter, speed indicator
Controls/Safety Group
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Operator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls
Parking Brake/Safety Circuit
Hand operated internal transaxle
Hand operated internal transaxle brake
Hand operated internal transaxle brake
Warranty (Balance of Machine) **
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
2-Year limited warranty commercial use, front-to-rear, parts & labor. Coverage on other components varies, please see operator's manual for complete details.
Engine Warranty**
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
3-Year limited manufacturer's warranty
Marketing Limited Warranty
2-Year
2-Year
2-Year
Marketing Cutting Width
48" +
48" +
48" +
Marketing Ground Speed
7 MPH
7 MPH
7 MPH
Marketing Gross Torque
23.5
23.5
23.5
