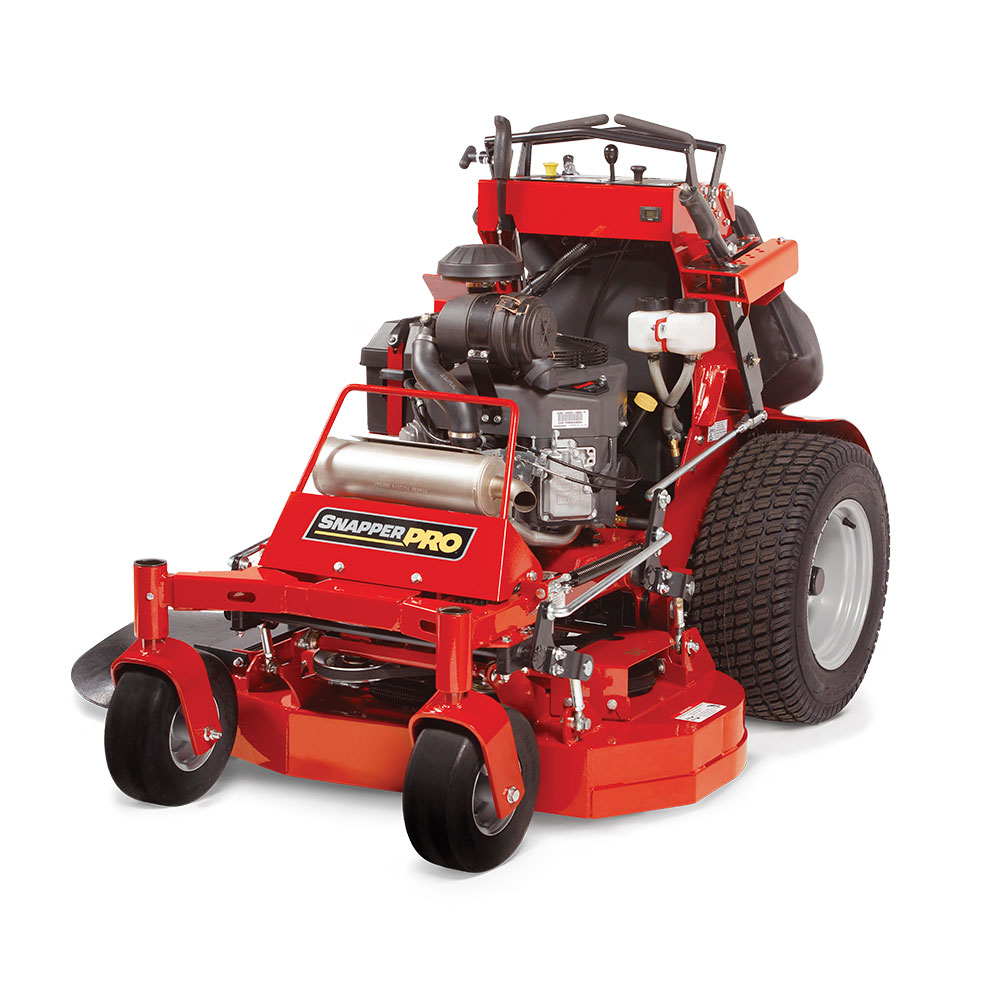

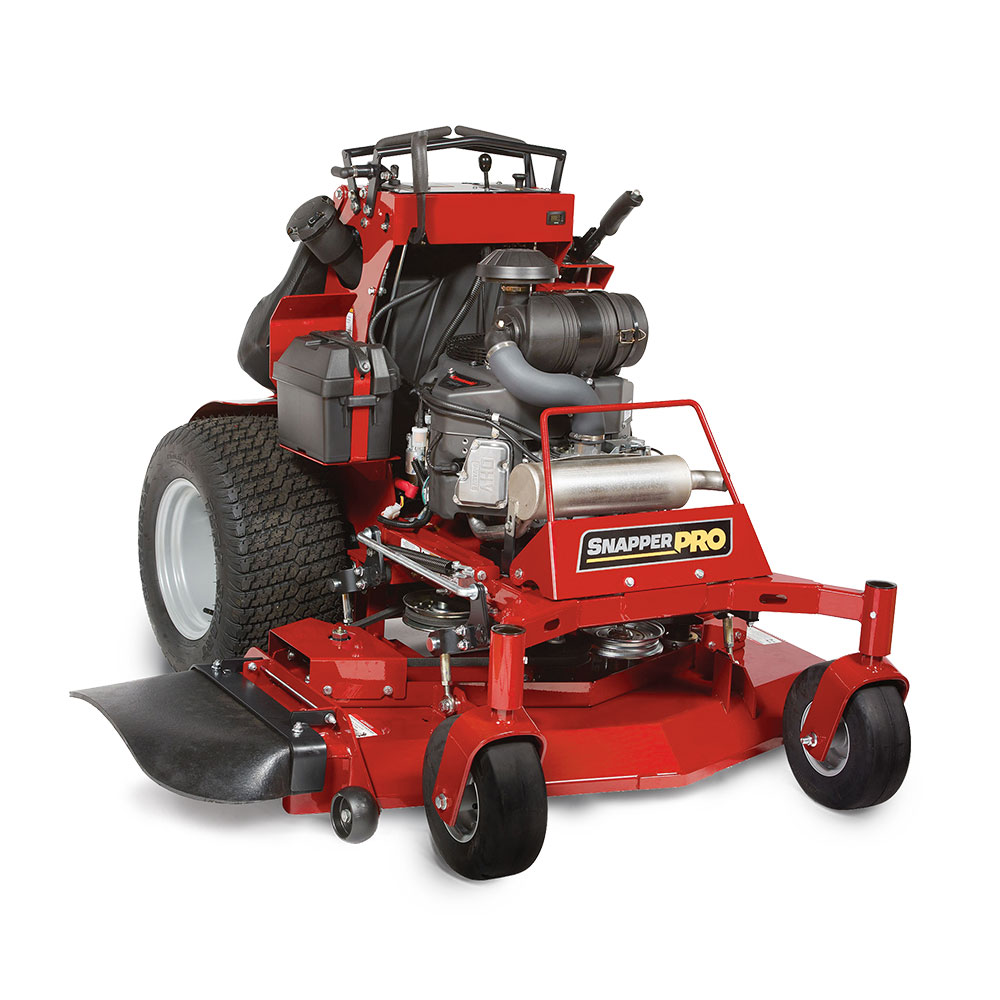

SS100

SS100

The SS100 offers the added productivity of a stand-on unit in a compact package. With smaller mowing deck widths of 36" or 48", the SS100 is built for navigating through tight gates or loading on small trailers. The operator is at the center of the design with an adjustable operator platform that adjusts to a wide range of weights and operating conditions. This unit pushes the limits of productivity and value for the commercial landscaper.


Limited quantity available.

36" +

Cutting Width

19 - 23

Top Gross Power*

1.75 - 5"

Height-of-Cut

3 - Year

Limited Warranty

Features

Height-of-Cut Adjustment

Cut height is easily changed from the operator compartment for easy curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75" - 5".

Adjustable Operator Platform

The adjustable operator platform system with suspension is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

Speed Control Setting

The 3-position speed control setting is easy-locking and conveniently located for smooth operation. No tools are required to easily change the control setting for operation in a range of conditions.

Contoured Thigh Pad

Ergonomically designed thigh pad with contoured edges provides superior operator comfort, allowing the operator to easily lean into turns and sloping terrain for easier operation.

Commercial Transaxle

Commercial Hydro-Gear® ZT-3400® transaxles are fully serviceable and designed for high performance.

iCD™ Cutting System

The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

High Fuel Capacity

A 6-gallon tank is centrally located in the operator tower for consistent balance. The fuel filler neck is conveniently located on the side of the unit for easy fuel refill.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901800
CAN MSRP ^
$10,499.00
Engine Brand
Vanguard® Model 3867
Engine Power Rating (hp)*
23
Number of Cylinders
2
Engine Displacement (cc)
627
Starting Type
Electric
Fuel Tank Capacity (US gal)
6
Transmission Make
Hydro-Gear® ZT-3400® Transaxles with 7" cooling fans
Ground Speed-Fwd (mph)
0-8
Ground Speed-Rev (mph)
0-4
Cutting Width (in)
36
Height-of-Cut (in)
1.75 - 5
Deck Suspension / Thickness
Adjustable coil-over-shock, Operator Suspension Platform
Spindle
Aluminum
Seat
N/A
Assembled Length (in)
65
Assembled Width (in)
49 / 42
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. Transaxle components are covered by a 3-year limited warranty.
Parking Brake
Internal Transaxle
Drive Axles
1.125
Drive Tires
23 x 8.5-12
Control and Safety Decals
Integrated forward & reverse control levers with stabilizer bars, Automatic PTO disengagement
Caster Tires
11 x 4-5, flat-free
Instrumentation
Engine and PTO hour meter, fuel level gauge
Oil Filter
N/A
Assembled Weight
813
Price USD MSRP Formatted
$7,999.00

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
5901801
CAN MSRP ^
$10,749.00
Engine Brand
Kawasaki® FX600V
Engine Power Rating (hp)*
19**
Number of Cylinders
2
Engine Displacement (cc)
603
Starting Type
Electric
Fuel Tank Capacity (US gal)
6
Transmission Make
Hydro-Gear® ZT-3400® Transaxles with 7" cooling fans
Ground Speed-Fwd (mph)
0-8
Ground Speed-Rev (mph)
0-4
Cutting Width (in)
48
Height-of-Cut (in)
1.75 - 5
Deck Suspension / Thickness
Adjustable coil-over-shock, Operator Suspension Platform
Spindle
Aluminum
Seat
N/A
Assembled Length (in)
65
Assembled Width (in)
59.5 / 54
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components caries, please see operator's manual for complete details. Transaxle components are covered by a 3-year limited warranty.
Parking Brake
Internal Transaxle
Drive Axles
1.125
Drive Tires
23 x 10.5-12
Control and Safety Decals
Integrated forward & reverse control levers with stabilizer bars, Automatic PTO disengagement
Caster Tires
11 x 4-5, flat-free
Instrumentation
Engine and PTO hour meter, fuel level gauge
Oil Filter
N/A
Assembled Weight
866
Price USD MSRP Formatted
$8,199.00

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Part Number
5901800
5901801
CAN MSRP ^
$10,499.00
$10,749.00
Engine Brand
Vanguard® Model 3867
Kawasaki® FX600V
Engine Power Rating (hp)*
23
19**
Number of Cylinders
2
2
Engine Displacement (cc)
627
603
Starting Type
Electric
Electric
Fuel Tank Capacity (US gal)
6
6
Transmission Make
Hydro-Gear® ZT-3400® Transaxles with 7" cooling fans
Hydro-Gear® ZT-3400® Transaxles with 7" cooling fans
Ground Speed-Fwd (mph)
0-8
0-8
Ground Speed-Rev (mph)
0-4
0-4
Cutting Width (in)
36
48
Height-of-Cut (in)
1.75 - 5
1.75 - 5
Deck Suspension / Thickness
Adjustable coil-over-shock, Operator Suspension Platform
Adjustable coil-over-shock, Operator Suspension Platform
Spindle
Aluminum
Aluminum
Seat
N/A
N/A
Assembled Length (in)
65
65
Assembled Width (in)
49 / 42
59.5 / 54
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details. Transaxle components are covered by a 3-year limited warranty.
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components caries, please see operator's manual for complete details. Transaxle components are covered by a 3-year limited warranty.
Parking Brake
Internal Transaxle
Internal Transaxle
Drive Axles
1.125
1.125
Drive Tires
23 x 8.5-12
23 x 10.5-12
Control and Safety Decals
Integrated forward & reverse control levers with stabilizer bars, Automatic PTO disengagement
Integrated forward & reverse control levers with stabilizer bars, Automatic PTO disengagement
Caster Tires
11 x 4-5, flat-free
11 x 4-5, flat-free
Instrumentation
Engine and PTO hour meter, fuel level gauge
Engine and PTO hour meter, fuel level gauge
Oil Filter
N/A
N/A
Assembled Weight
813
866
Price USD MSRP Formatted
$7,999.00
$8,199.00

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton®.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
