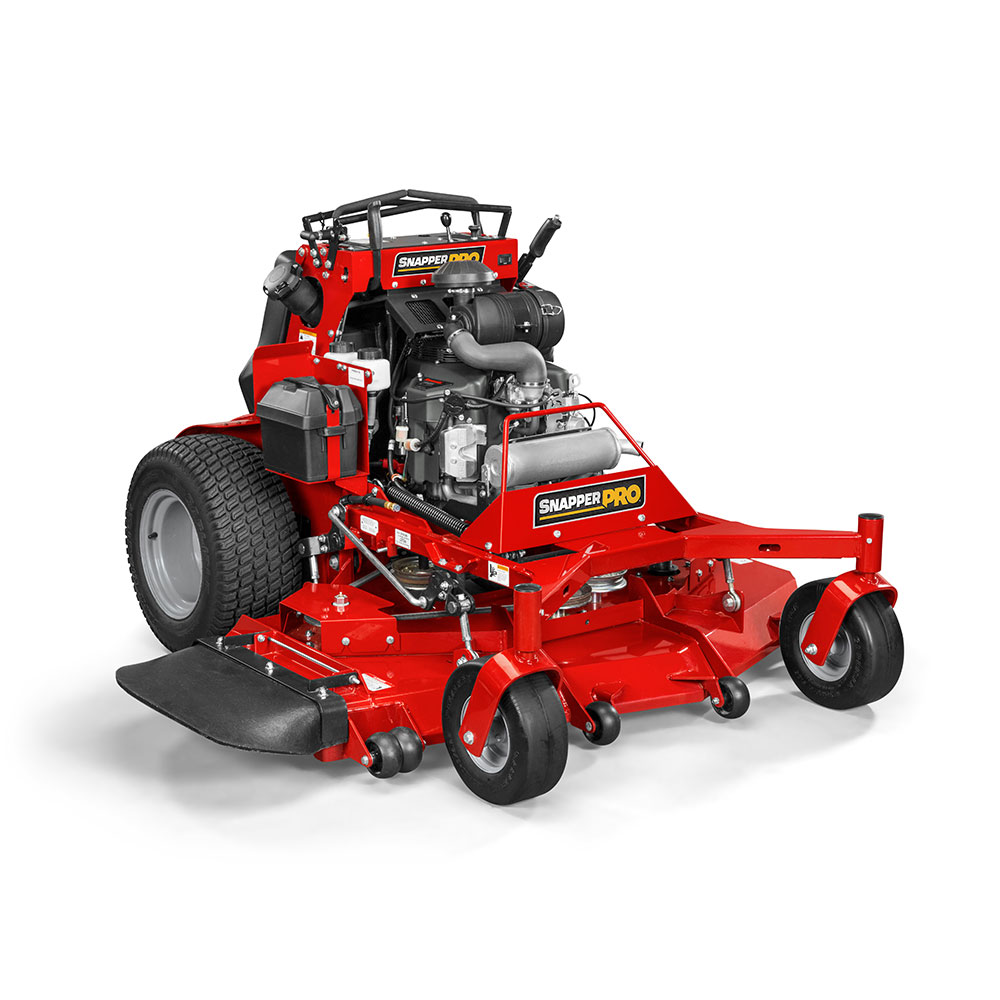

SS200

SS200

The SS200 balances stability with maneuverability for a unit that takes traction and handling to the next level. An adjustable operator platform with suspension optimizes operator comfort and increases productivity, allowing customer operation in a variety of conditions. The SS200 unique design allows for quick operator exit and re-entry, with the PTO automatically disengaging when the operator leaves the platform, but allows the engine to continue to idle to maintain productivity.


Limited quantity available.

52 - 61"

Cutting Width

28

Top Gross Power*

1.75 - 5"

Height-of-Cut

3 - Year

Limited Warranty

Features

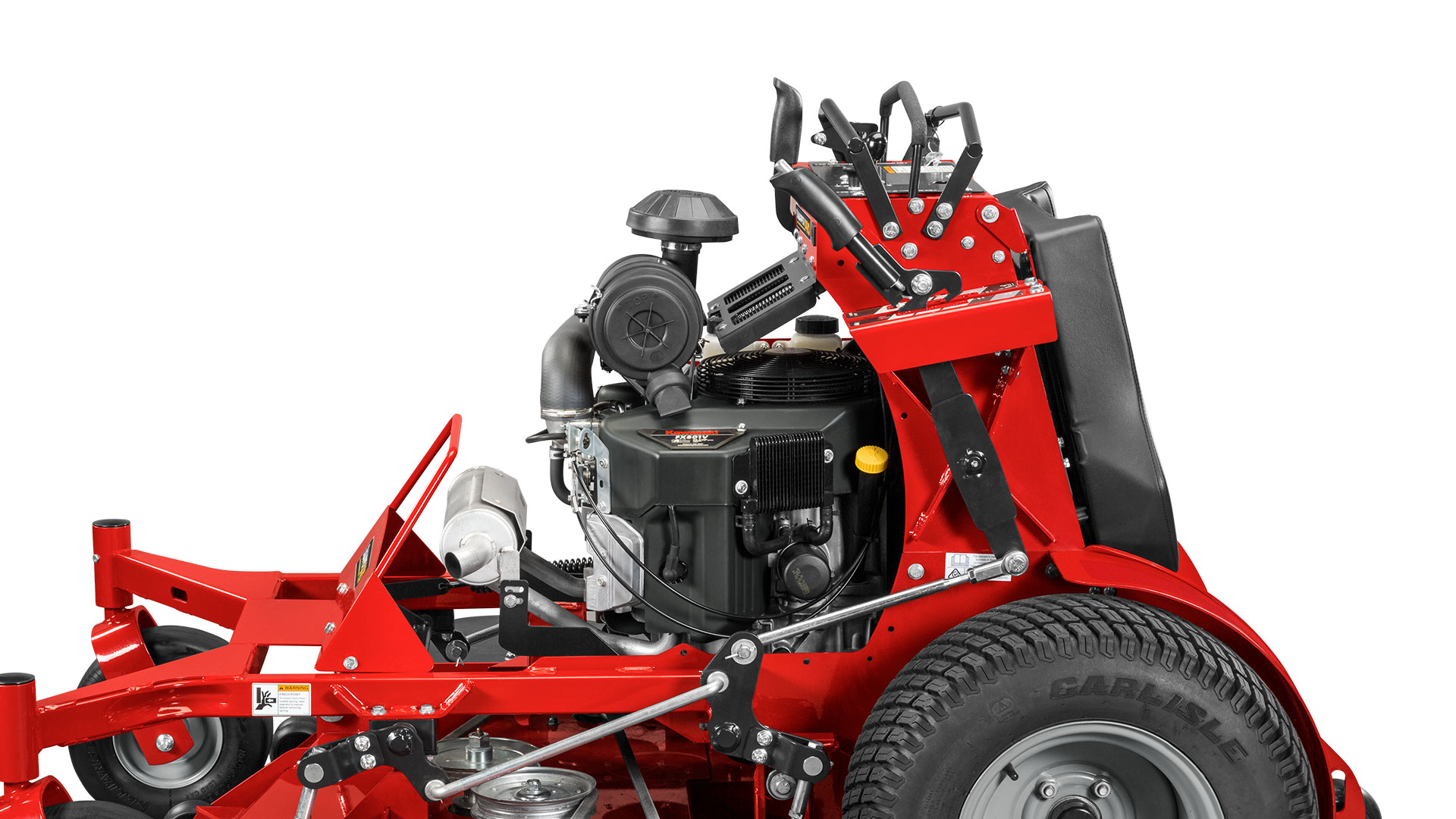

500 Hour Oil Change Intervals

Vanguard® Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**

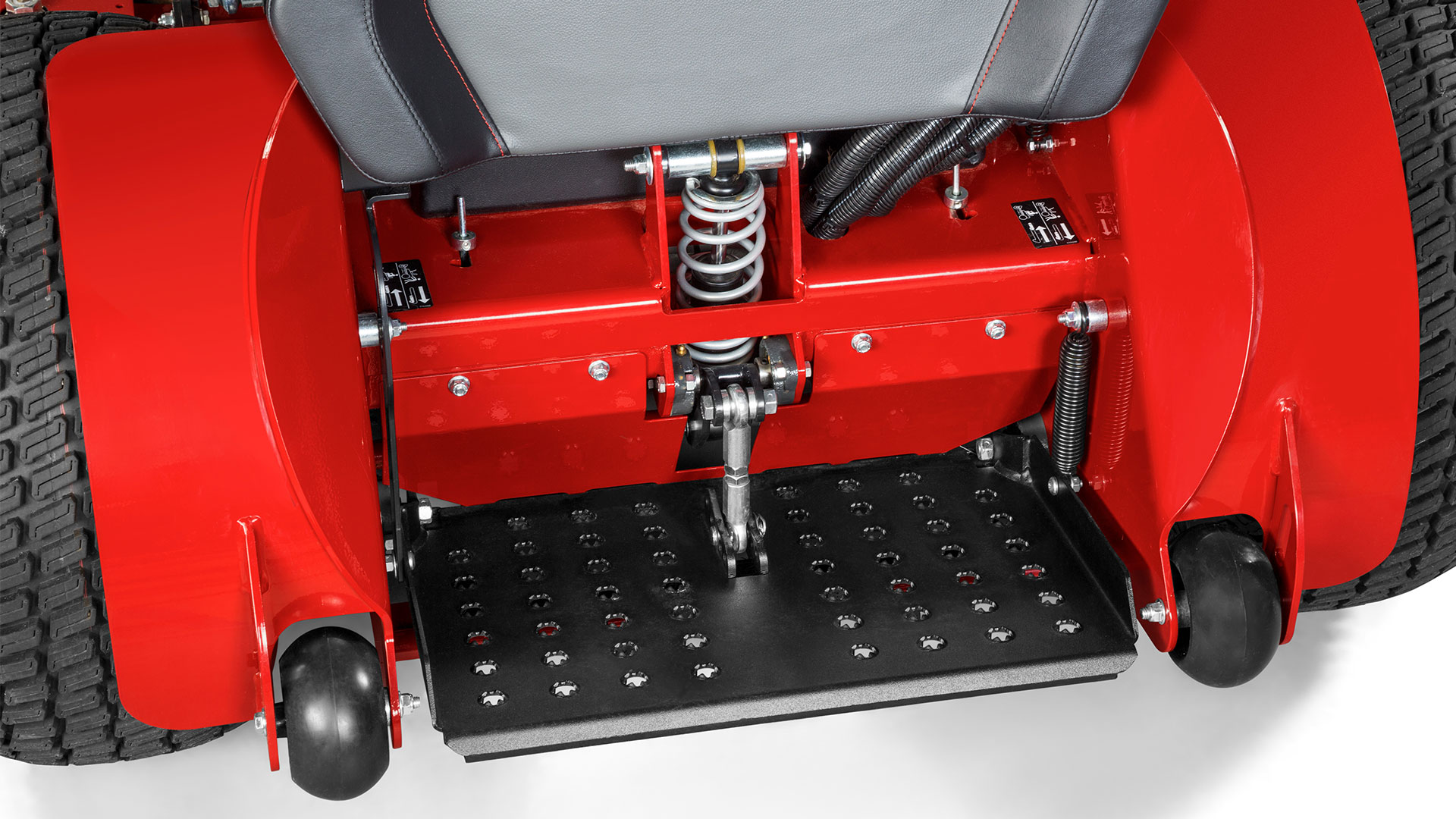

Adjustable Operator Platform

The adjustable operator platform system with suspension is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.

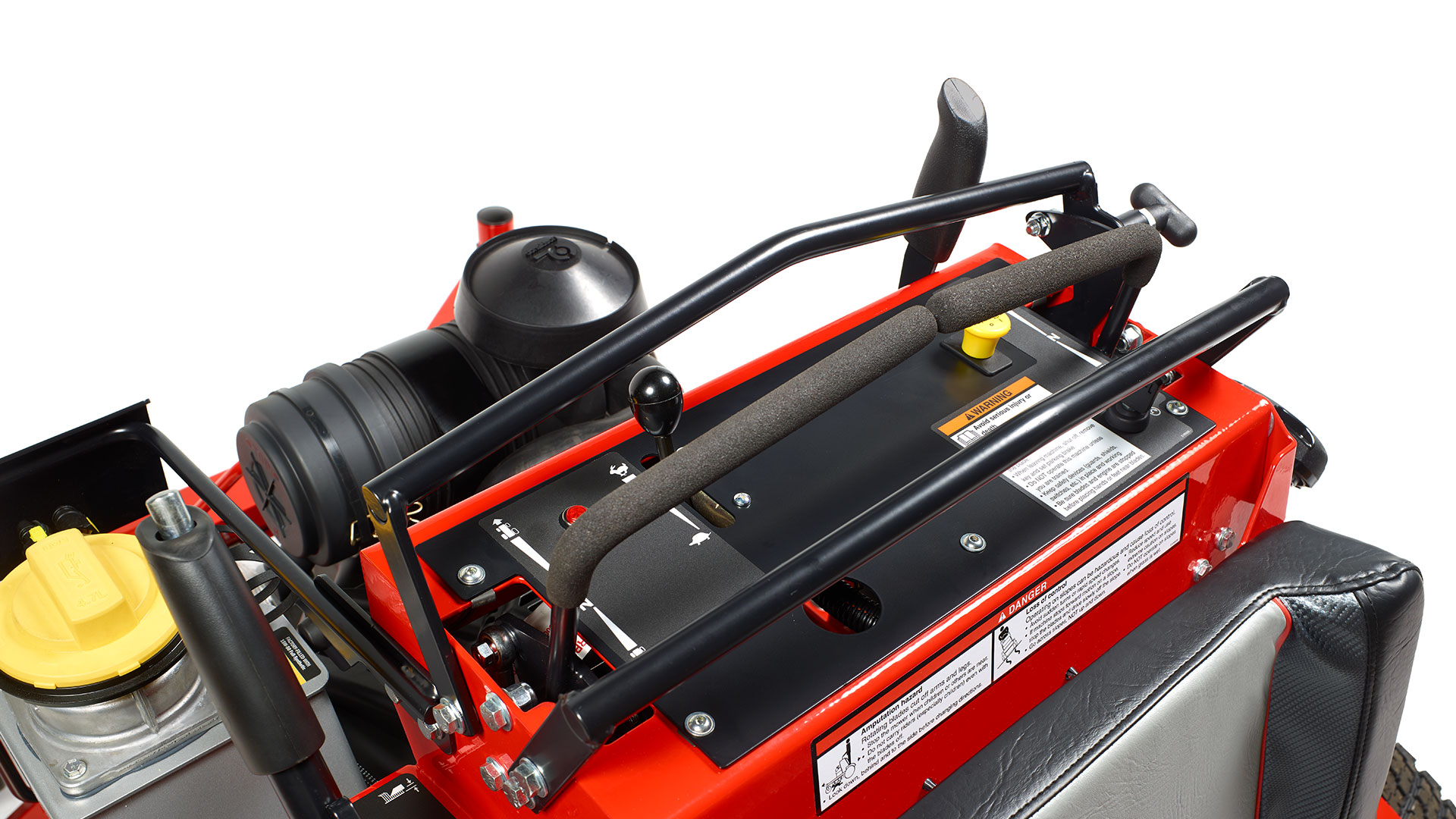

Speed Control Setting

The 3-position speed control setting is easy-locking and conveniently located for smooth operation. No tools are required to easily change the control setting for operation in a range of conditions.

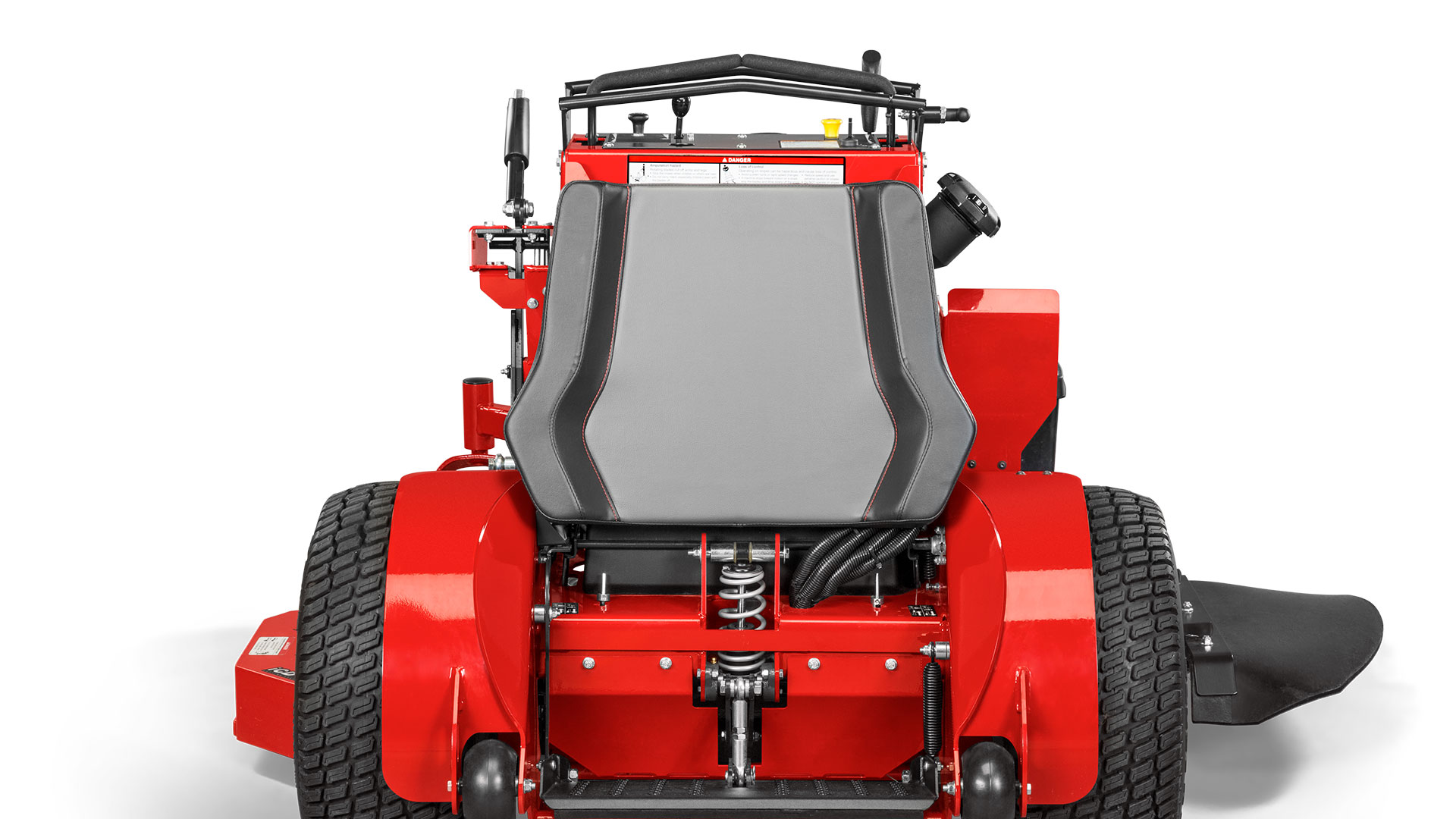

Contoured Thigh Pad

Ergonomically designed thigh pad with contoured edges provides superior operator comfort, allowing the operator to easily lean into turns and sloping terrain for easier operation.

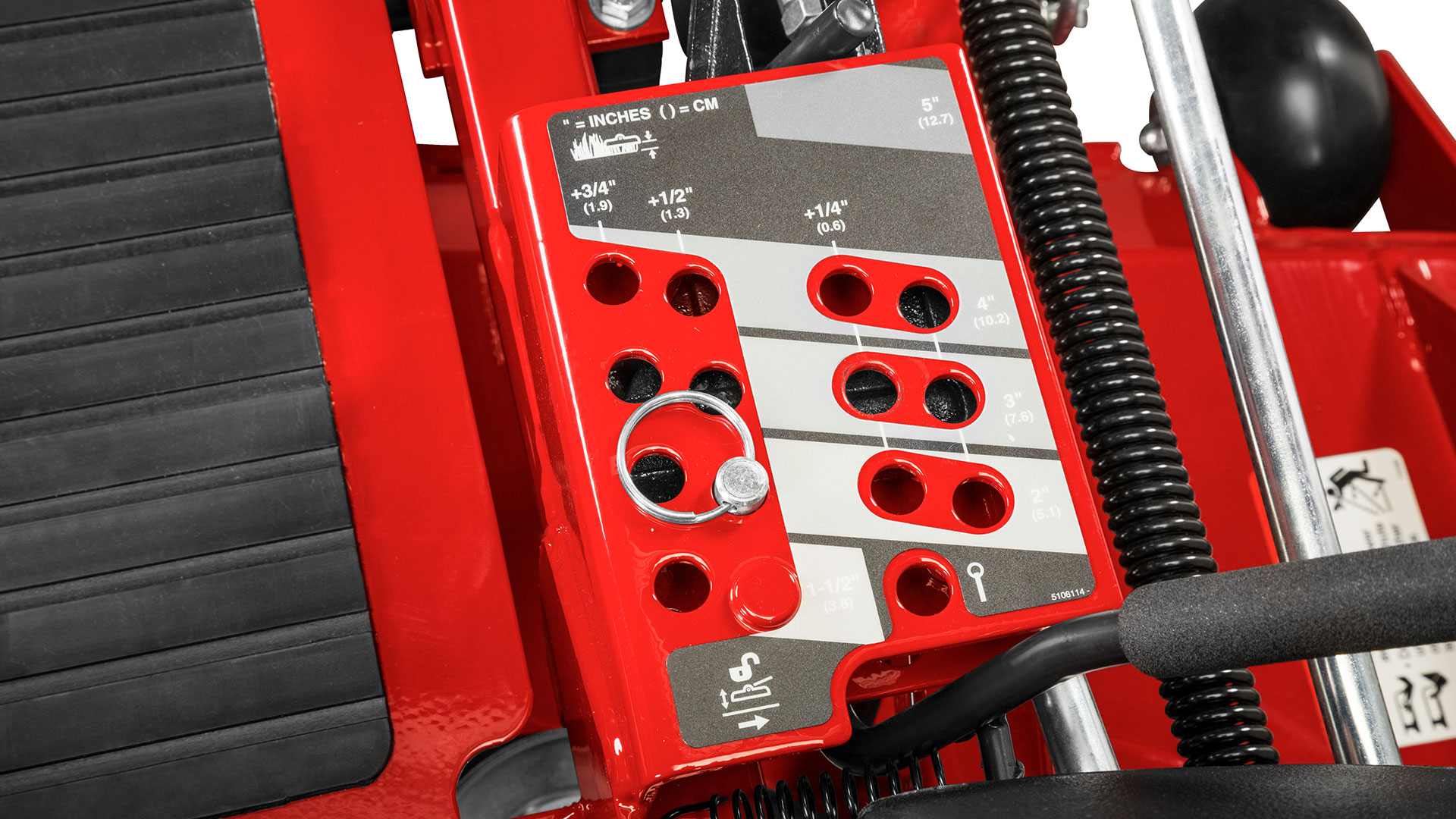

Height-of-Cut Adjustment

Cut height is easily changed from the operator compartment for easy curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"-5".

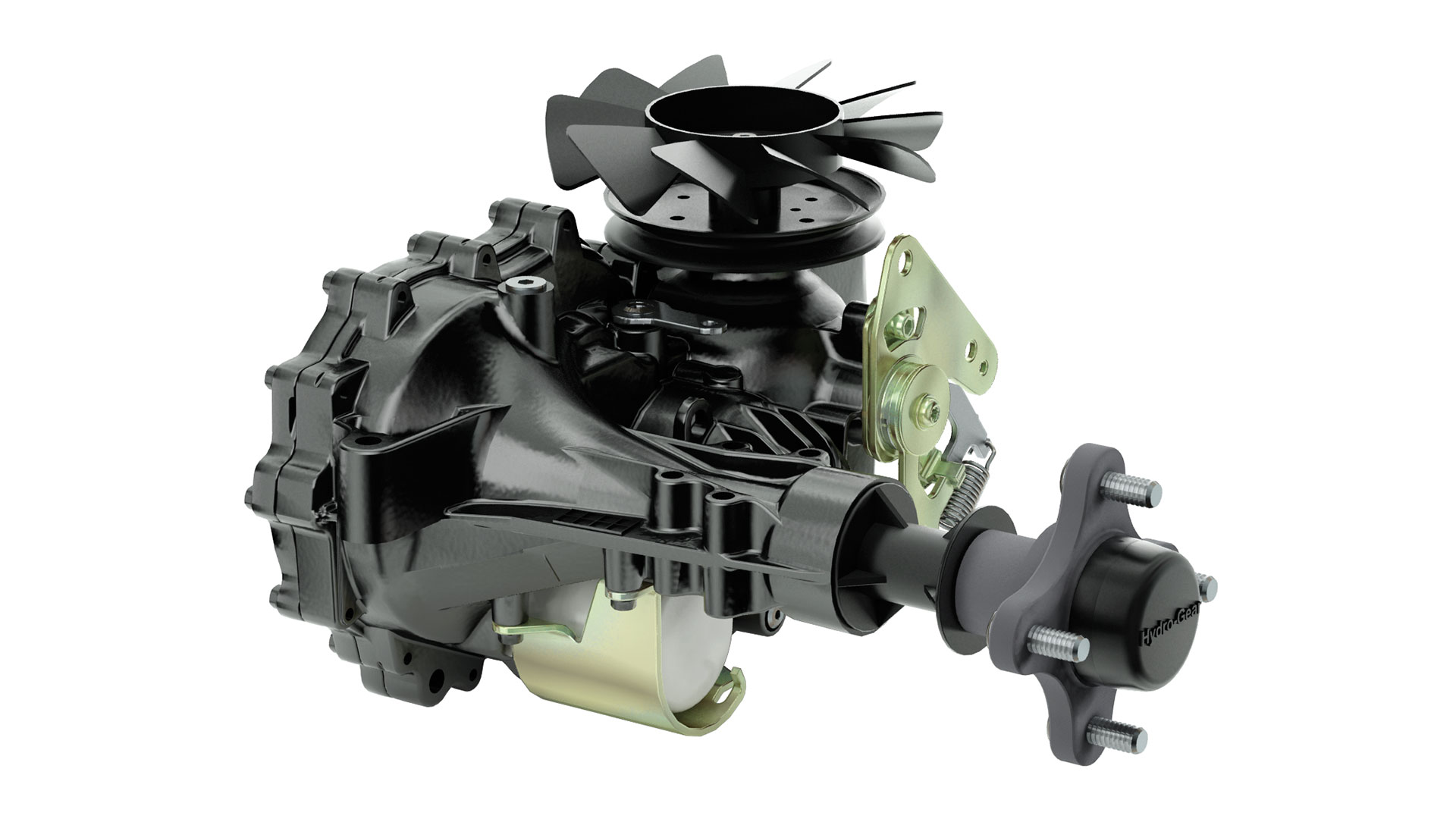

Commercial Transaxle

Commercial Hydro-Gear® ZT-3800® transaxles are fully serviceable and designed for high performance.

iCD™ Cutting System

The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

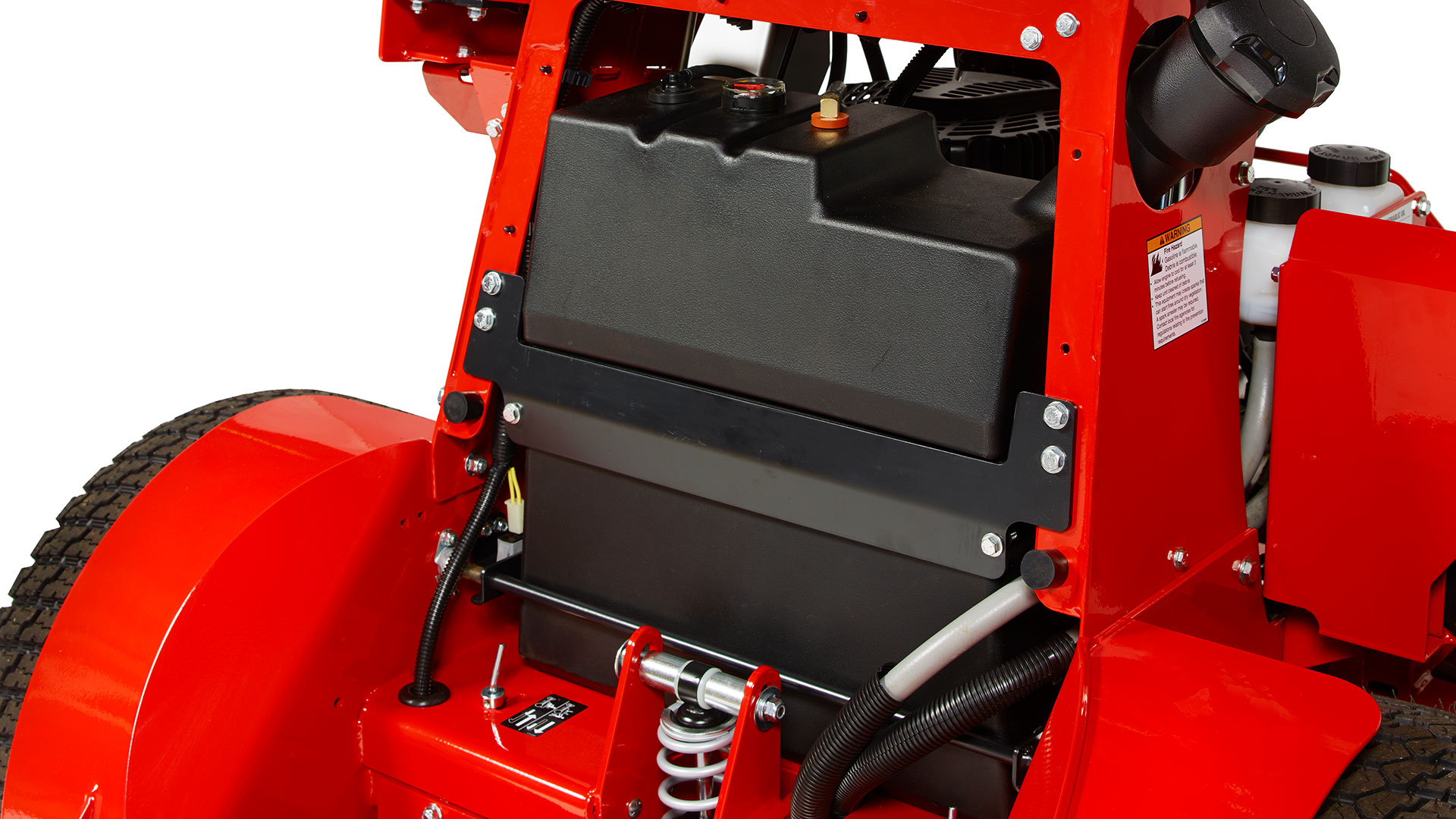

High Fuel Capacity

An 8-gallon tank is centrally located in the operator tower for consistent balance. The fuel filler neck is conveniently located on the side of the unit for easy fuel refill.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901860
US MSRP ^
$10,749.00
CAN MSRP ^
$13,649.00
Engine Brand
Vanguard® 810cc EFI
Engine Power Rating (hp)*
28
Number of Cylinders
2
Engine Displacement (cc)
810
Starting Type
Electric
Fuel Tank Capacity (US gal)
8
Transmission Make
Hydro-Gear® ZT-3800® Oil Cooling System
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Cutting Width (in)
61
Height-of-Cut (in)
1.75 - 5
Deck Suspension / Thickness
Adjustable coil-over-shock, Operator Suspension Platform
Spindle
Aluminum
Seat
N/A
Assembled Length (in)
72
Assembled Width (in)
77/64
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Parking Brake
Internal Transaxle
Drive Axles
1.125
Drive Tires
23 x 10.5-12
Control and Safety Decals
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Caster Tires
13 x 5-6, flat-free
Instrumentation
Engine and PTO hour meter, fuel level gauge
Oil Filter
Standard
Assembled Weight
998

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901861
US MSRP ^
$10,199.00
CAN MSRP ^
$13,049.00
Engine Brand
Vanguard® 810 cc EFI
Engine Power Rating (hp)*
28
Number of Cylinders
2
Engine Displacement (cc)
810
Starting Type
Electric
Fuel Tank Capacity (US gal)
8
Transmission Make
Hydro-Gear® ZT-3800® with Oil Cooling System
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Cutting Width (in)
52
Height-of-Cut (in)
1.75 - 5
Deck Suspension / Thickness
Adjustable coil-over-shock, Operator Suspension Platform
Spindle
Aluminum
Seat
N/A
Assembled Length (in)
67
Assembled Width (in)
65/54
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Parking Brake
Internal Transaxle
Drive Axles
1.125
Drive Tires
23 x 10.5-12
Control and Safety Decals
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Caster Tires
13 x 5-6, flat-free
Instrumentation
Engine and PTO hour meter, fuel level gauge
Oil Filter
Standard
Assembled Weight
921

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901860
5901861
US MSRP ^
$10,749.00
$10,199.00
CAN MSRP ^
$13,649.00
$13,049.00
Engine Brand
Vanguard® 810cc EFI
Vanguard® 810 cc EFI
Engine Power Rating (hp)*
28
28
Number of Cylinders
2
2
Engine Displacement (cc)
810
810
Starting Type
Electric
Electric
Fuel Tank Capacity (US gal)
8
8
Transmission Make
Hydro-Gear® ZT-3800® Oil Cooling System
Hydro-Gear® ZT-3800® with Oil Cooling System
Ground Speed-Fwd (mph)
0-10
0-10
Ground Speed-Rev (mph)
0-5
0-5
Cutting Width (in)
61
52
Height-of-Cut (in)
1.75 - 5
1.75 - 5
Deck Suspension / Thickness
Adjustable coil-over-shock, Operator Suspension Platform
Adjustable coil-over-shock, Operator Suspension Platform
Spindle
Aluminum
Aluminum
Seat
N/A
N/A
Assembled Length (in)
72
67
Assembled Width (in)
77/64
65/54
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
Parking Brake
Internal Transaxle
Internal Transaxle
Drive Axles
1.125
1.125
Drive Tires
23 x 10.5-12
23 x 10.5-12
Control and Safety Decals
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart
Caster Tires
13 x 5-6, flat-free
13 x 5-6, flat-free
Instrumentation
Engine and PTO hour meter, fuel level gauge
Engine and PTO hour meter, fuel level gauge
Oil Filter
Standard
Standard
Assembled Weight
998
921

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
