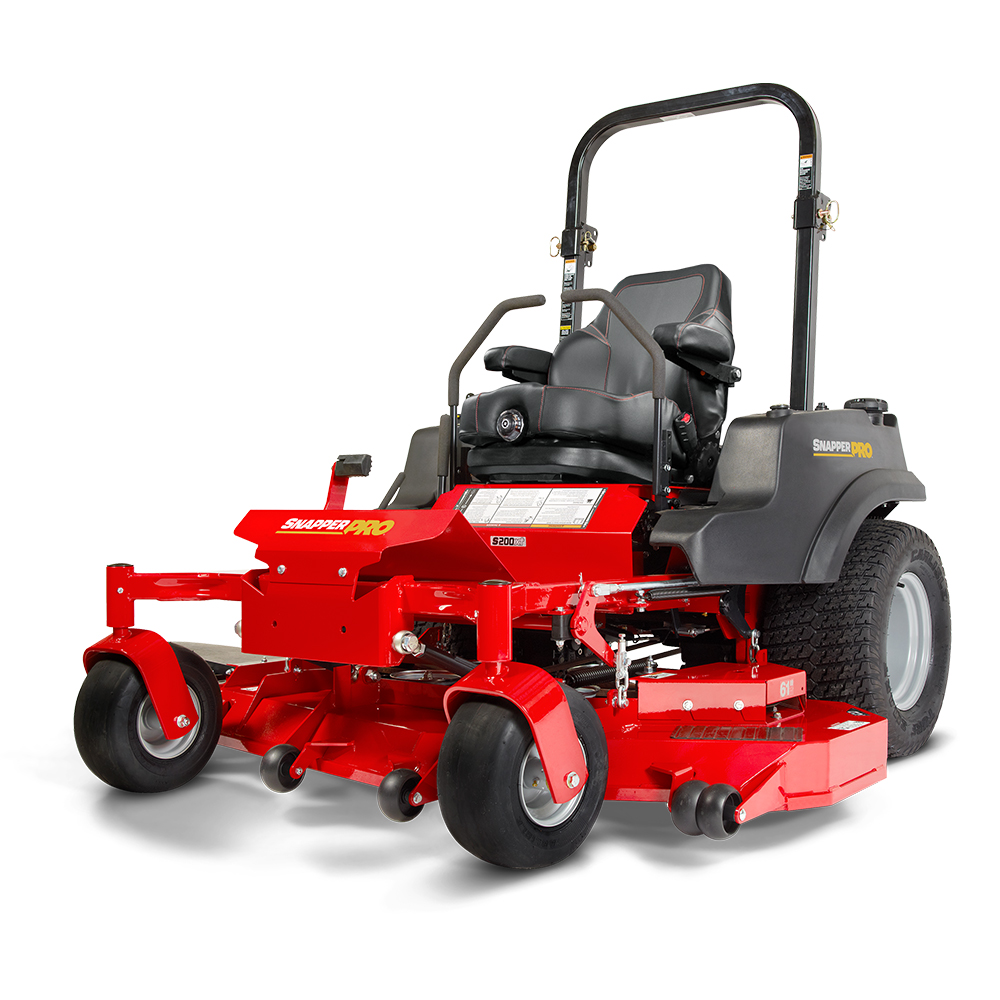

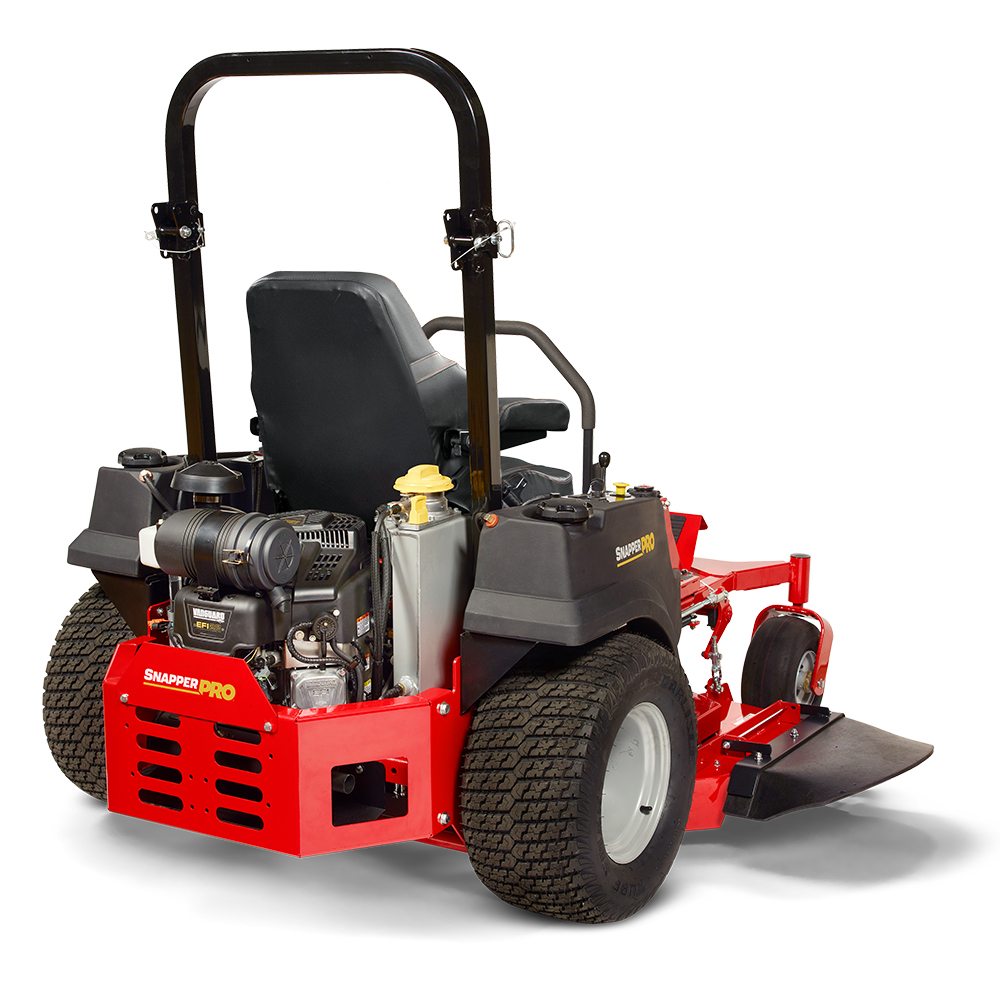

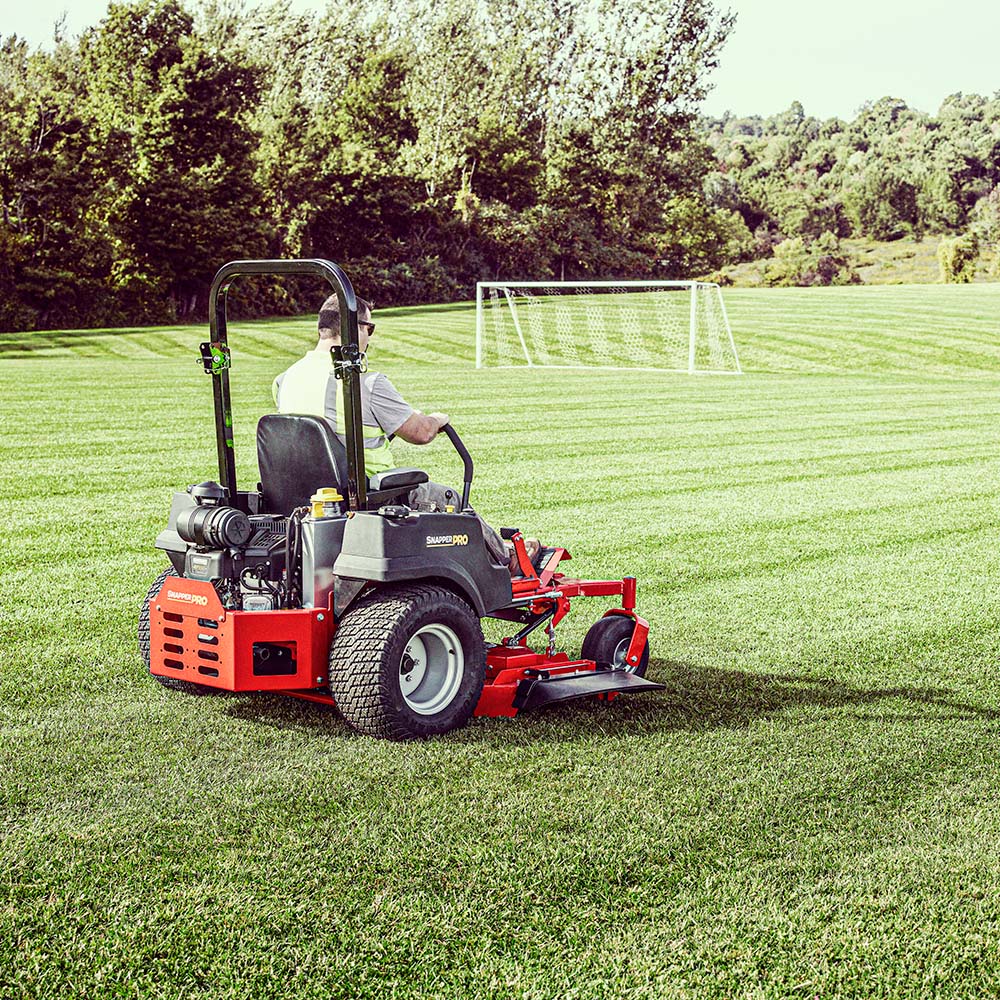

    S200xt

    S200xt
    S200xt

    S200xt

    The S200xt is equipped to ride for a full day of work with impressive features and premium components. Available with our iCD™ Cutting System deck in 61" and 72" cutting widths, the S200xt will cut your big jobs down to size. This machine delivers maximum performance and productivity.

    Feature

    Features

    500 Hour Oil Change

    Vanguard® engines with Oil Guard System reduce maintenance time and costs by up to 60%***

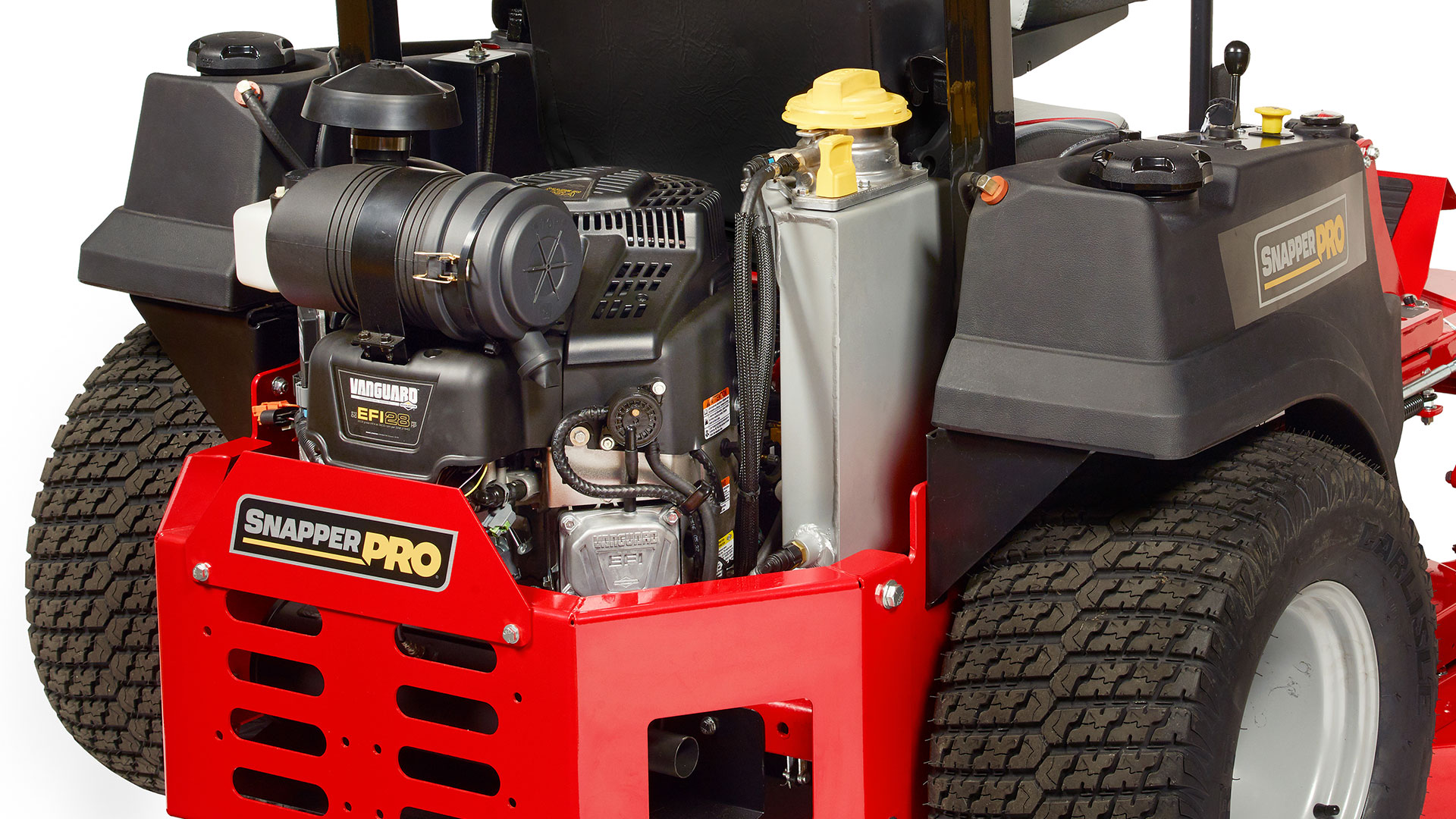

    Powerful Engine

    Vanguard® BIG BLOCK™ engine provides increased horsepower and more torque.

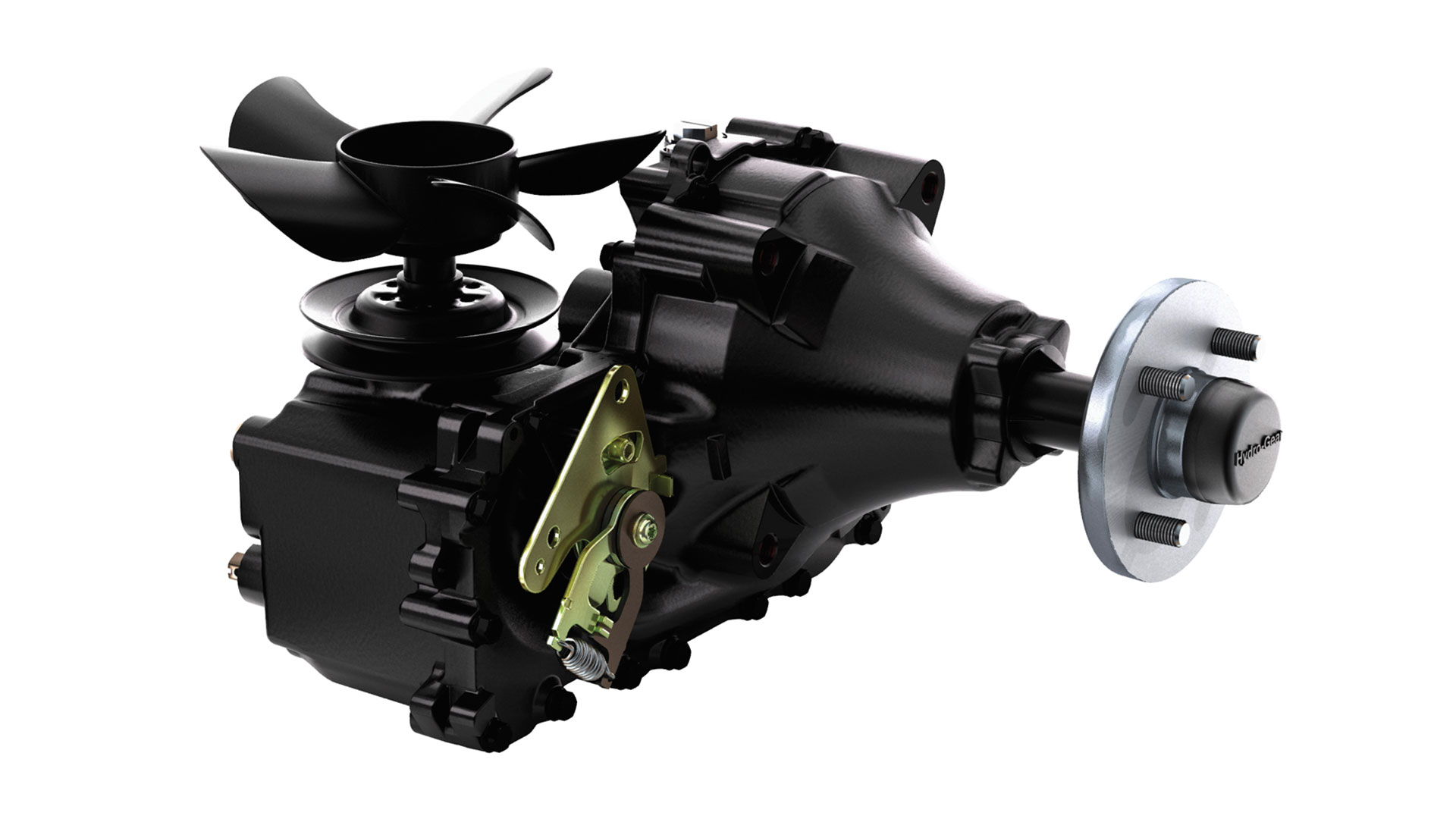

    Integrated Transmission

    Dual, commercial Hydro-Gear® ZT-5400™ Powertrain® Transaxles deliver unmatched power and durability.

    Accessibility

    Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

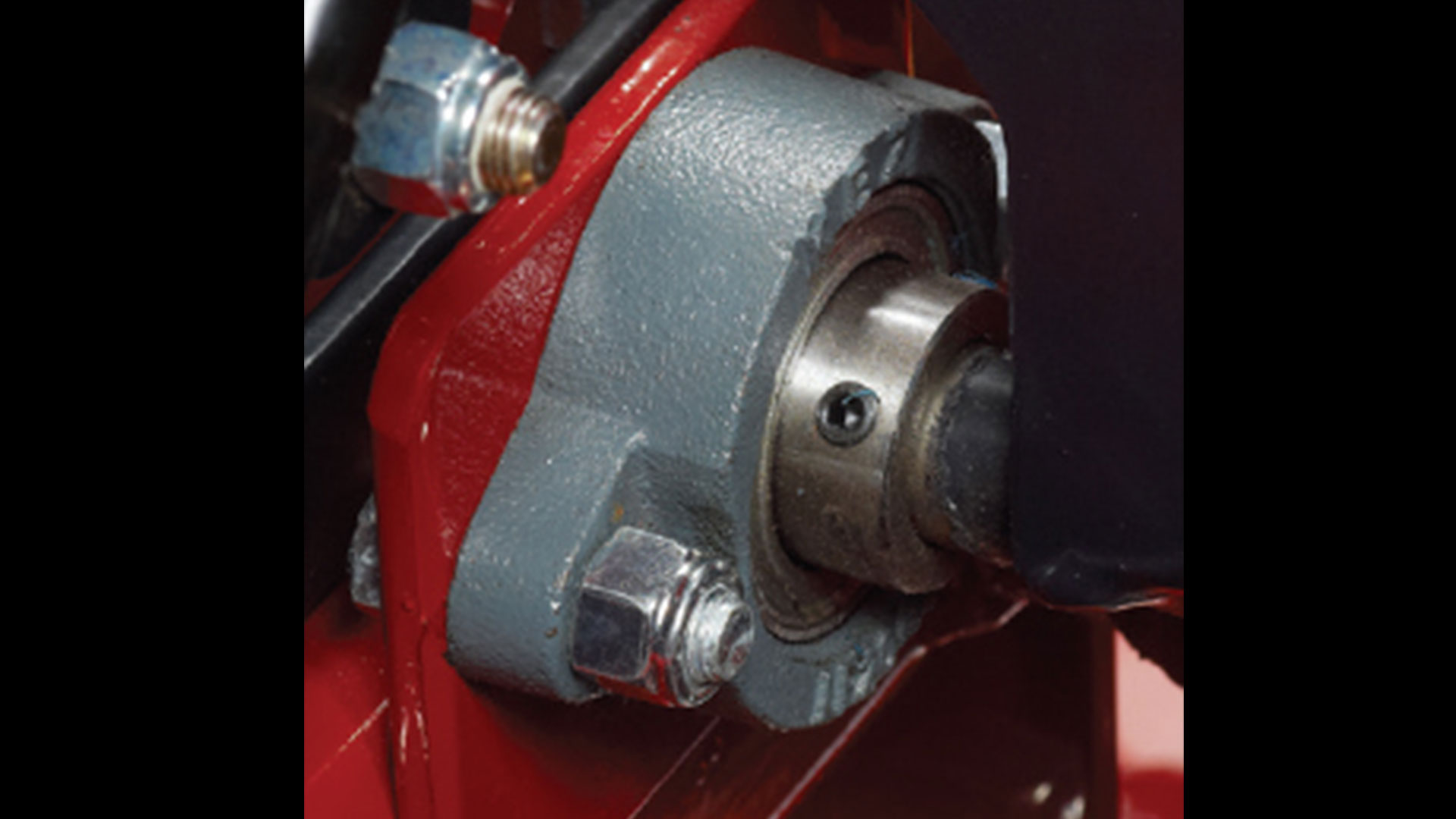

    Smooth Controls

    Pillow block bearing on control mounts make for long lasting smooth, precision control.

    iCD™ Cutting System

    The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

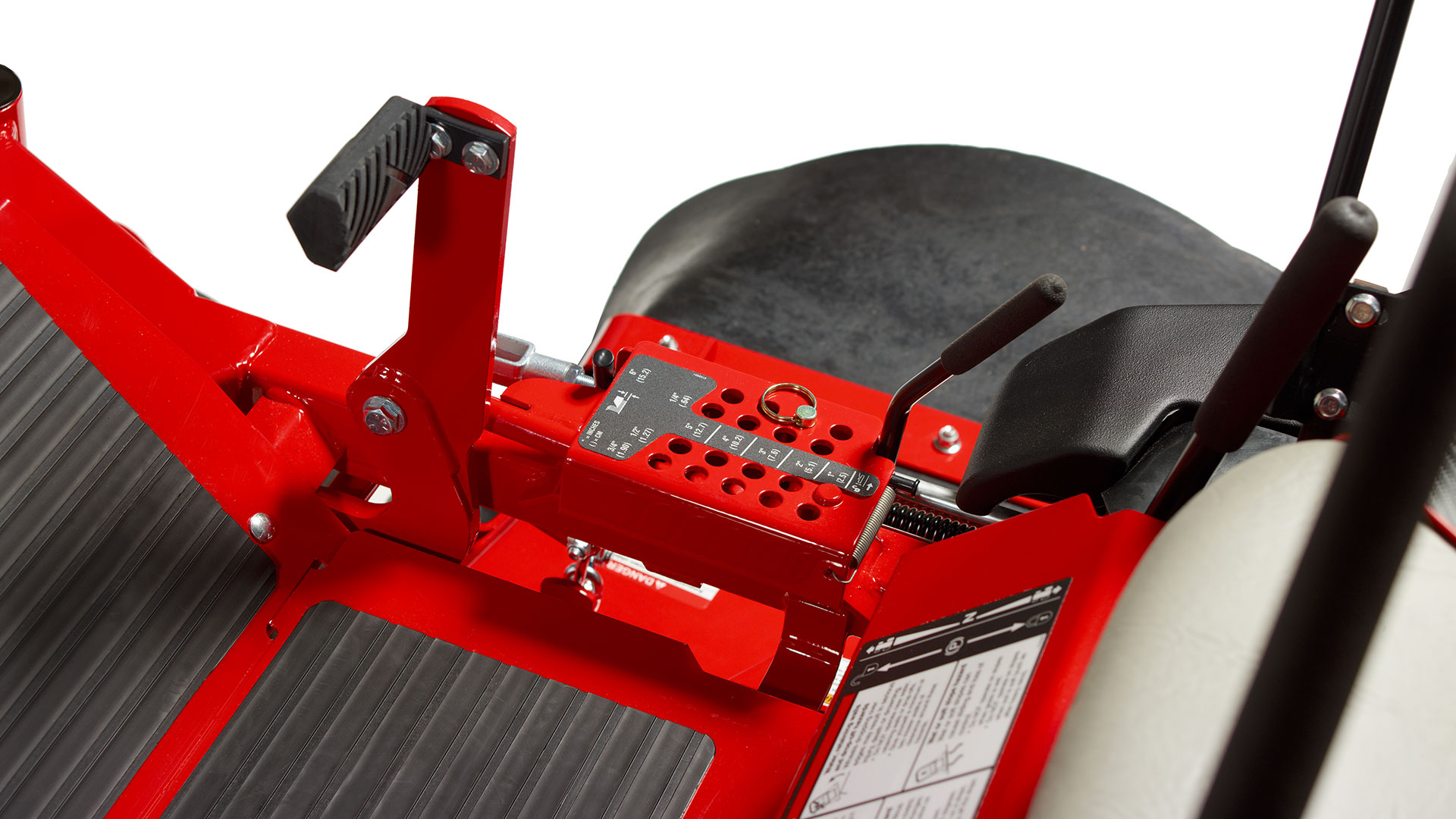

    Foot-operated Deck Lift

    The easy-to-use deck lift takes the effort out of adjusting cut height. Cutting height ranges from 1.5" - 6" in 0.25" increments.

    Specifications

    At least one product must be displayed. Please select another option to remove this product

    US MSRP ^
    $9,449.00
    CAN MSRP ^
    $12,099.00
    Engine Brand
    Briggs & Stratton® Commercial Series
    HP (gross) *
    27
    Displacement (cc)
    810
    Number of Cylinders
    2
    Starting Type
    Electric
    Fuel Tank Capacity (gal)
    5
    Transmission
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Ground Speed-Fwd (mph)
    0-10
    Ground Speed-Rev (mph)
    0-5
    Cutting Width (in)
    61
    Height-of-Cut (in)
    1.5 - 5
    Belts
    Custom 5V belt with Kevlar™ cords
    Deck Construction
    iCD™ Cutting System
    PTO
    Electric
    Spindles
    Cast-iron, greaseable
    Frame Rail
    2 x 2, 7-gauge
    Bearings
    Greaseable tapered caster yoke bearings
    Finish
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Drive Axles
    1.375 Tapered
    Drive Tires (in)
    24 x 12-12
    Caster Tires (in)
    13 x 6.5-6 Pneumatic
    Overall Length (in)
    79
    Overall Weight (lbs)
    1190
    Overall Width (in.) deflector down / deflector up (model)
    76/63
    Seat Package
    Mid-back with armrests
    Seat Armrests
    Yes
    Roll Over Protection System with retractable seatbelt
    Standard, 165-degree foldable
    Instrumentation
    Hour meter, Fuel level gauge
    Controls/Safety Group
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Parking Brake/Safety Circuit
    Internal Transaxle
    Warranty (Engine) ***
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

    *All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
    **All power level are stated gross horsepower per SAE J2723 as rated by Kawasaki.
    ***See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ****Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
    ^ Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

    US MSRP ^
    $9,999.00
    CAN MSRP ^
    $13,049.00
    Engine Brand
    Kawasaki® FX801V
    HP (gross) *
    25.5**
    Displacement (cc)
    852
    Number of Cylinders
    2
    Starting Type
    Electric
    Fuel Tank Capacity (gal)
    10
    Transmission
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Ground Speed-Fwd (mph)
    0-10
    Ground Speed-Rev (mph)
    0-5
    Cutting Width (in)
    61
    Height-of-Cut (in)
    1.5 - 5
    Belts
    Custom 5V belt with Kevlar™ cords
    Deck Construction
    iCD™ Cutting System
    PTO
    Electric
    Spindles
    Cast-iron, greaseable
    Frame Rail
    2 x 2, 7-gauge
    Bearings
    Greaseable tapered caster yoke bearings
    Finish
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Drive Axles
    1.375 Tapered
    Drive Tires (in)
    24 x 12-12
    Caster Tires (in)
    13 x 6.5-6 Pneumatic
    Overall Length (in)
    79
    Overall Weight (lbs)
    1190
    Overall Width (in.) deflector down / deflector up (model)
    76/63
    Seat Package
    Mid-back with armrests
    Seat Armrests
    Yes
    Roll Over Protection System with retractable seatbelt
    Standard, 165-degree foldable
    Instrumentation
    Hour meter, Fuel level gauge
    Controls/Safety Group
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Parking Brake/Safety Circuit
    Internal Transaxle
    Warranty (Engine) ***
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

    *All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
    **All power level are stated gross horsepower per SAE J2723 as rated by Kawasaki.
    ***See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ****Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
    ^ Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

    US MSRP ^
    $10,499.00
    CAN MSRP ^
    $13,649.00
    Engine Brand
    Vanguard® 810cc EFI with Oil Guard
    HP (gross) *
    28
    Displacement (cc)
    810
    Number of Cylinders
    2
    Starting Type
    Electric
    Fuel Tank Capacity (gal)
    10
    Transmission
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Ground Speed-Fwd (mph)
    0-10
    Ground Speed-Rev (mph)
    0-5
    Cutting Width (in)
    61
    Height-of-Cut (in)
    1.5 - 5
    Belts
    Custom 5V belt with Kevlar™ cords
    Deck Construction
    iCD™ Cutting System
    PTO
    Electric
    Spindles
    Cast-iron, greaseable
    Frame Rail
    2 x 2, 7-gauge
    Bearings
    Greaseable tapered caster yoke bearings
    Finish
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Drive Axles
    1.375 Tapered
    Drive Tires (in)
    24 x 12-12
    Caster Tires (in)
    13 x 6.5-6 Pneumatic
    Overall Length (in)
    79
    Overall Weight (lbs)
    1190
    Overall Width (in.) deflector down / deflector up (model)
    76/63
    Seat Package
    Suspension Seat
    Seat Armrests
    Yes
    Roll Over Protection System with retractable seatbelt
    Standard, 165-degree foldable
    Instrumentation
    Hour meter, Fuel level gauge
    Controls/Safety Group
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Parking Brake/Safety Circuit
    Internal Transaxle
    Warranty (Engine) ***
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

    *All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
    **All power level are stated gross horsepower per SAE J2723 as rated by Kawasaki.
    ***See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ****Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
    ^ Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

    US MSRP ^
    $12,299.00
    CAN MSRP ^
    $15,649.00
    Engine Brand
    Vanguard® BIG BLOCK™ EFI with Oil Guard
    HP (gross) *
    37
    Displacement (cc)
    993
    Number of Cylinders
    2
    Starting Type
    Electric
    Fuel Tank Capacity (gal)
    10
    Transmission
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Ground Speed-Fwd (mph)
    0-10
    Ground Speed-Rev (mph)
    0-5
    Cutting Width (in)
    61
    Height-of-Cut (in)
    1.5 - 5
    Belts
    Custom 5V belt with Kevlar™ cords
    Deck Construction
    iCD™ Cutting System
    PTO
    Electric
    Spindles
    Cast-iron, greaseable
    Frame Rail
    2 x 2, 7-gauge
    Bearings
    Greaseable tapered caster yoke bearings
    Finish
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Drive Axles
    1.375 Tapered
    Drive Tires (in)
    24 x 12-12
    Caster Tires (in)
    13 x 6.5-6 Pneumatic
    Overall Length (in)
    79
    Overall Weight (lbs)
    1190
    Overall Width (in.) deflector down / deflector up (model)
    76/63
    Seat Package
    Suspension Seat
    Seat Armrests
    Yes
    Roll Over Protection System with retractable seatbelt
    Standard, 165-degree foldable
    Instrumentation
    Hour meter, Fuel level gauge
    Controls/Safety Group
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Parking Brake/Safety Circuit
    Internal Transaxle
    Warranty (Engine) ***
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

    *All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
    **All power level are stated gross horsepower per SAE J2723 as rated by Kawasaki.
    ***See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ****Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
    ^ Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

    US MSRP ^
    $13,349.00
    CAN MSRP ^
    $17,049.00
    Engine Brand
    Vanguard® BIG BLOCK™ EFI with Oil Guard
    HP (gross) *
    37
    Displacement (cc)
    993
    Number of Cylinders
    2
    Starting Type
    Electric
    Fuel Tank Capacity (gal)
    10
    Transmission
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Ground Speed-Fwd (mph)
    0-10
    Ground Speed-Rev (mph)
    0-5
    Cutting Width (in)
    72
    Height-of-Cut (in)
    1.5 - 5
    Belts
    Custom 5V belt with Kevlar™ cords
    Deck Construction
    iCD™ Cutting System
    PTO
    Electric
    Spindles
    Hercules™ II, greaseable
    Frame Rail
    2 x 2, 7-gauge
    Bearings
    Greaseable tapered caster yoke bearings
    Finish
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Drive Axles
    1.375 Tapered
    Drive Tires (in)
    24 x 12-12
    Caster Tires (in)
    13 x 6.5-6 Pneumatic
    Overall Length (in)
    82
    Overall Weight (lbs)
    1424
    Overall Width (in.) deflector down / deflector up (model)
    88/75
    Seat Package
    Suspension Seat
    Seat Armrests
    Yes
    Roll Over Protection System with retractable seatbelt
    Standard, 165-degree foldable
    Instrumentation
    Hour meter, Fuel level gauge
    Controls/Safety Group
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Parking Brake/Safety Circuit
    Internal Transaxle
    Warranty (Engine) ***
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

    *All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
    **All power level are stated gross horsepower per SAE J2723 as rated by Kawasaki.
    ***See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ****Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
    ^ Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

    US MSRP ^
    $9,449.00
    $9,999.00
    $10,499.00
    $12,299.00
    $13,349.00
    CAN MSRP ^
    $12,099.00
    $13,049.00
    $13,649.00
    $15,649.00
    $17,049.00
    Engine Brand
    Briggs & Stratton® Commercial Series
    Kawasaki® FX801V
    Vanguard® 810cc EFI with Oil Guard
    Vanguard® BIG BLOCK™ EFI with Oil Guard
    Vanguard® BIG BLOCK™ EFI with Oil Guard
    HP (gross) *
    27
    25.5**
    28
    37
    37
    Displacement (cc)
    810
    852
    810
    993
    993
    Number of Cylinders
    2
    2
    2
    2
    2
    Starting Type
    Electric
    Electric
    Electric
    Electric
    Electric
    Fuel Tank Capacity (gal)
    5
    10
    10
    10
    10
    Transmission
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
    Ground Speed-Fwd (mph)
    0-10
    0-10
    0-10
    0-10
    0-10
    Ground Speed-Rev (mph)
    0-5
    0-5
    0-5
    0-5
    0-5
    Cutting Width (in)
    61
    61
    61
    61
    72
    Height-of-Cut (in)
    1.5 - 5
    1.5 - 5
    1.5 - 5
    1.5 - 5
    1.5 - 5
    Belts
    Custom 5V belt with Kevlar™ cords
    Custom 5V belt with Kevlar™ cords
    Custom 5V belt with Kevlar™ cords
    Custom 5V belt with Kevlar™ cords
    Custom 5V belt with Kevlar™ cords
    Deck Construction
    iCD™ Cutting System
    iCD™ Cutting System
    iCD™ Cutting System
    iCD™ Cutting System
    iCD™ Cutting System
    PTO
    Electric
    Electric
    Electric
    Electric
    Electric
    Spindles
    Cast-iron, greaseable
    Cast-iron, greaseable
    Cast-iron, greaseable
    Cast-iron, greaseable
    Hercules™ II, greaseable
    Frame Rail
    2 x 2, 7-gauge
    2 x 2, 7-gauge
    2 x 2, 7-gauge
    2 x 2, 7-gauge
    2 x 2, 7-gauge
    Bearings
    Greaseable tapered caster yoke bearings
    Greaseable tapered caster yoke bearings
    Greaseable tapered caster yoke bearings
    Greaseable tapered caster yoke bearings
    Greaseable tapered caster yoke bearings
    Finish
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
    Drive Axles
    1.375 Tapered
    1.375 Tapered
    1.375 Tapered
    1.375 Tapered
    1.375 Tapered
    Drive Tires (in)
    24 x 12-12
    24 x 12-12
    24 x 12-12
    24 x 12-12
    24 x 12-12
    Caster Tires (in)
    13 x 6.5-6 Pneumatic
    13 x 6.5-6 Pneumatic
    13 x 6.5-6 Pneumatic
    13 x 6.5-6 Pneumatic
    13 x 6.5-6 Pneumatic
    Overall Length (in)
    79
    79
    79
    79
    82
    Overall Weight (lbs)
    1190
    1190
    1190
    1190
    1424
    Overall Width (in.) deflector down / deflector up (model)
    76/63
    76/63
    76/63
    76/63
    88/75
    Seat Package
    Mid-back with armrests
    Mid-back with armrests
    Suspension Seat
    Suspension Seat
    Suspension Seat
    Seat Armrests
    Yes
    Yes
    Yes
    Yes
    Yes
    Roll Over Protection System with retractable seatbelt
    Standard, 165-degree foldable
    Standard, 165-degree foldable
    Standard, 165-degree foldable
    Standard, 165-degree foldable
    Standard, 165-degree foldable
    Instrumentation
    Hour meter, Fuel level gauge
    Hour meter, Fuel level gauge
    Hour meter, Fuel level gauge
    Hour meter, Fuel level gauge
    Hour meter, Fuel level gauge
    Controls/Safety Group
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
    Parking Brake/Safety Circuit
    Internal Transaxle
    Internal Transaxle
    Internal Transaxle
    Internal Transaxle
    Internal Transaxle
    Warranty (Engine) ***
    3-Year limited manufacturer's warranty
    3-Year limited manufacturer's warranty
    3-Year limited manufacturer's warranty
    3-Year limited manufacturer's warranty
    3-Year limited manufacturer's warranty
    Warranty (Balance of Machine) †
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.
    4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies, please see operator's manual for complete details.

    *All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
    **All power level are stated gross horsepower per SAE J2723 as rated by Kawasaki.
    ***See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
    ****Cost savings based on oil maintenance with 100 hour interval versus Oil Guard System 500 hour service interval.
    ^ Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

    Attachments

    Turbo-Pro™, Turbo-Pro™ Max or Fast-Vac® Triple Bag Soft Top Collection System

    Simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 12.5 cubic feet

    Turbo-Pro™, Turbo-Pro™ Max or Fast-Vac® Triple Bag Hard Top Collection System

    Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 15 cubic feet.

    Turbo-Pro™ Max or Fast-Vac® EZ Dump XL™ Collection System

    Ideal for larger jobs. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. Capacity: 14 cubic feet.

    Mulch Kit

    Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

    Professional Lawn Striper

    Rubber flap system lays down grass to create patterns across the landscape.Capacity: 14 cubic feet.

    Trailer Hitch Kit

    Will accept a 1/2” shank ball and comes complete with hardware.

    Turbo-Pro™, Turbo-Pro™ Max or Fast-Vac® Electric DFS Collection System

    The Electric DFS increases productivity by giving the operator the ability to release clippings from their seat with the use of a toggle switch. Capacity: 12.5 cubic feet.

    Flat-Free Caster Tires

    Run all day with no flats.

    LED Light Kit

    Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.

    Email Newsletter Sign Up

    © 2021 Briggs & Stratton, LLC. All Rights Reserved.
