There’s no stopping the S200XT commercial zero turn with its large 61” and 72” deck widths, an available Vanguard® BIG BLOCK™ Engine with EFI and 10 MPH speed. You'll have fewer stops for fuel and maintenance with a 10-gallon fuel capacity and our Oil Guard™ system with a 500-hour oil change interval.


Limited quantity on select models, see your local dealer for availability.

61" +

Cutting Width

25.5 - 37

Top Gross Power*

1.5 - 5"

Height-of-Cut

3 - Year

Limited Warranty

Features

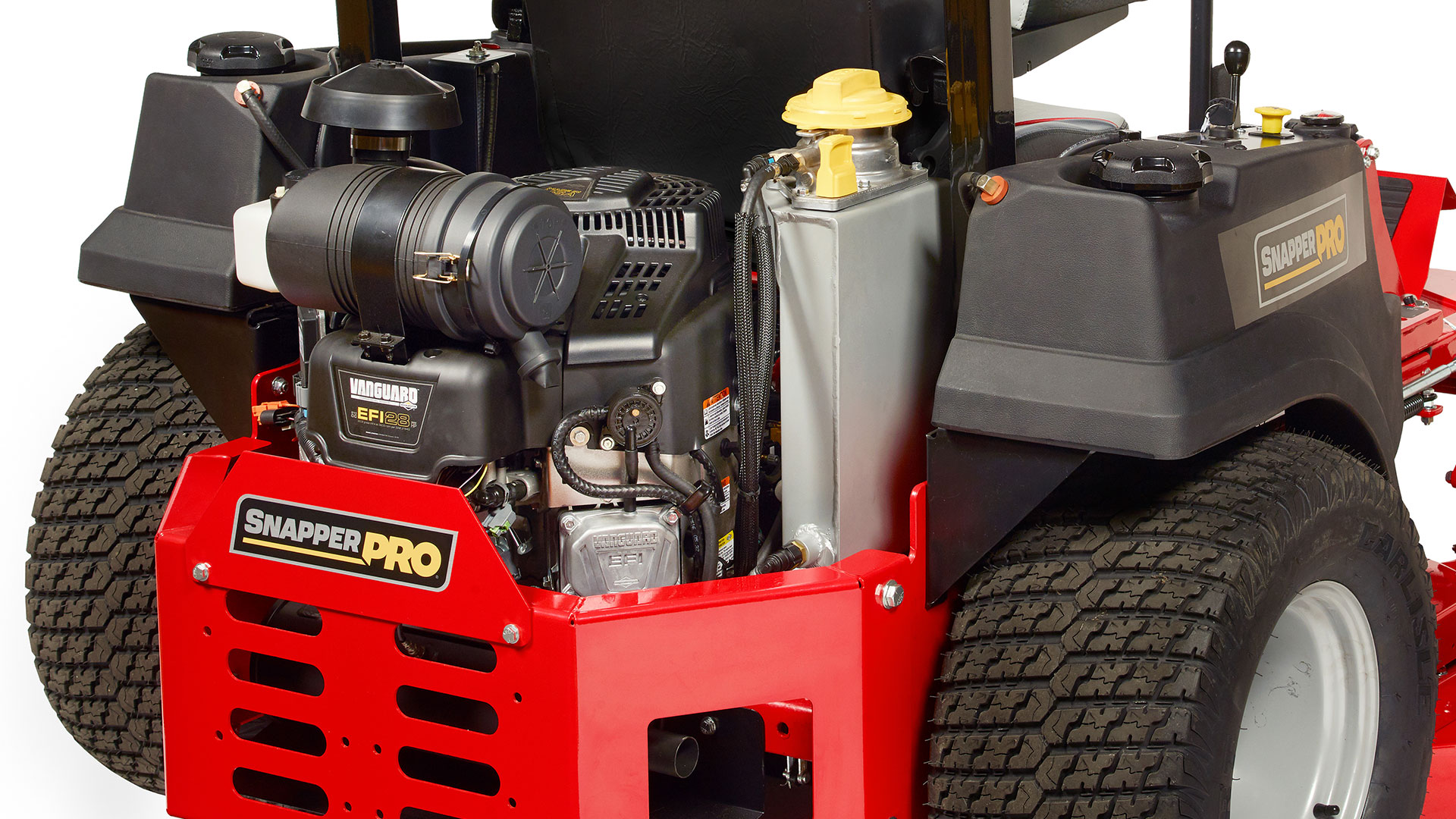

Vanguard® Engines with Oil Guard System

Vanguard engines with the Oil Guard System reduce oil maintenance time and costs up to 60%.

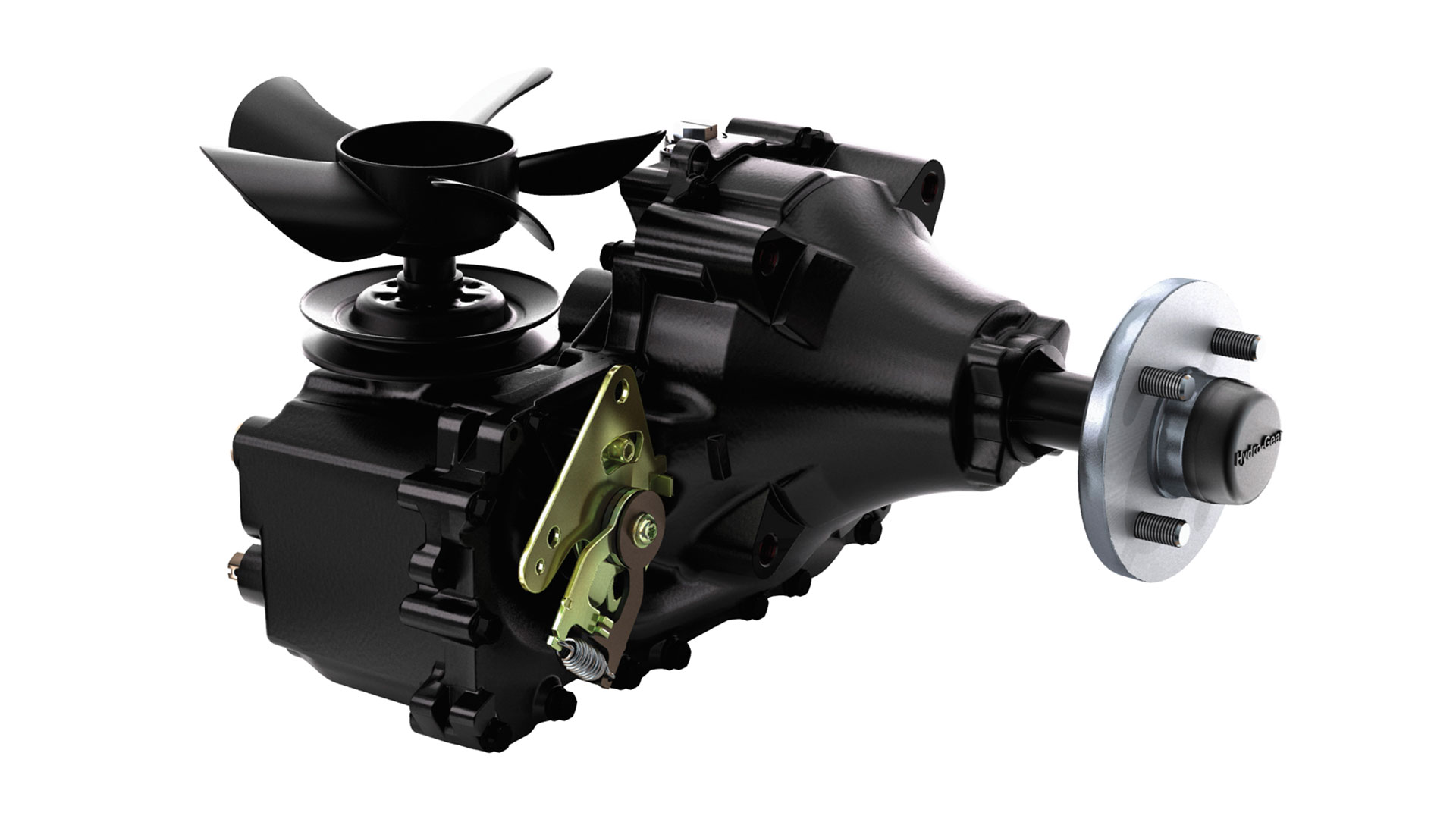

Unmatched Power & Durability

Dual, commercial Hydro-Gear® ZT-5400™ Powertrain® Transaxles deliver unmatched power and durability.

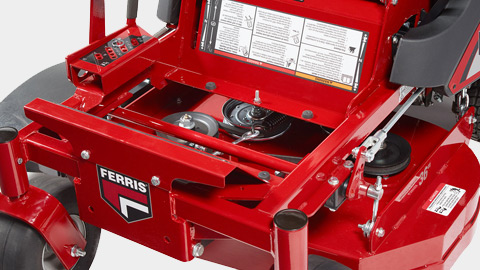

Accessibility

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

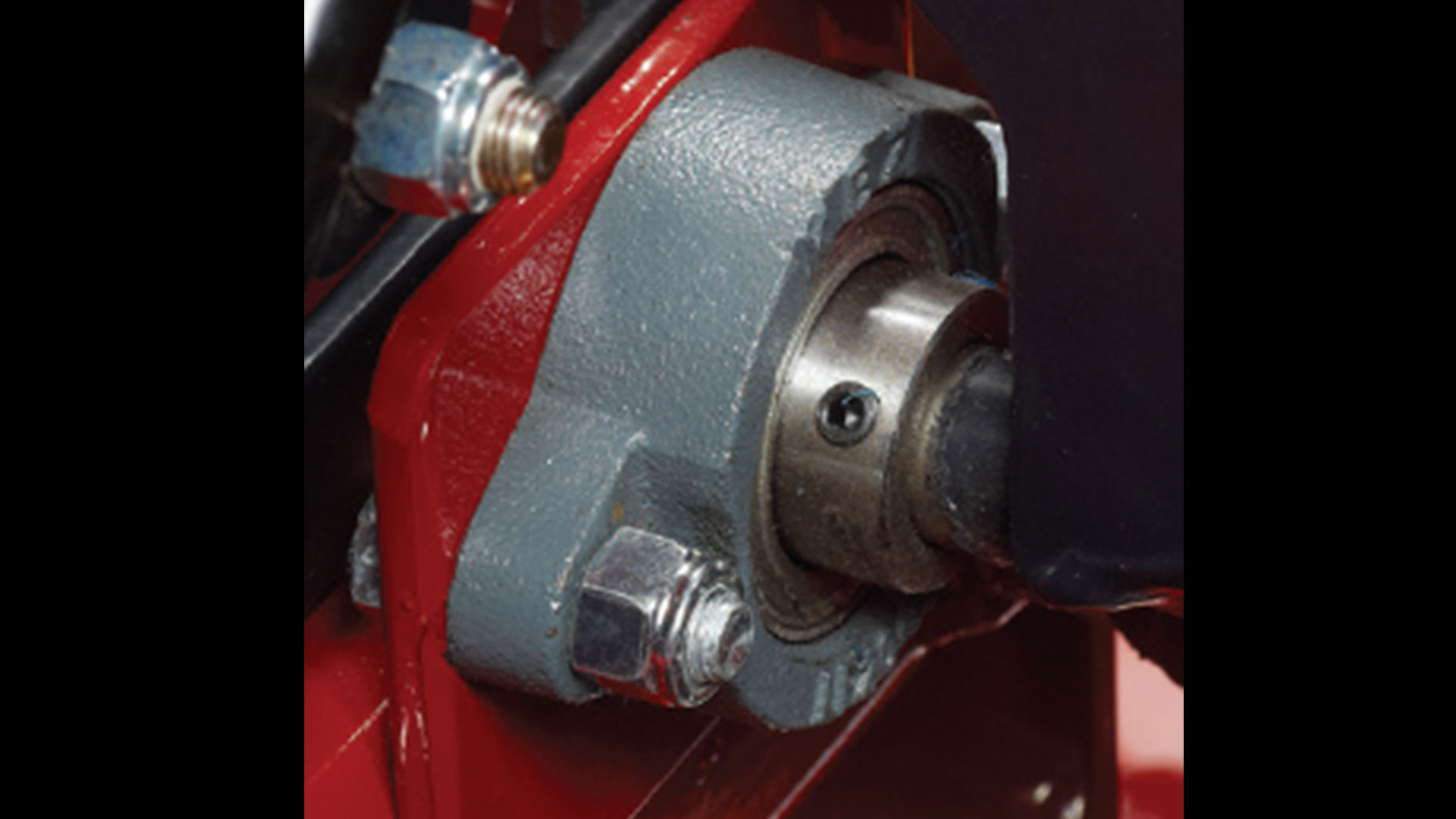

Smooth Controls

Pillow block bearing on control mounts make for long lasting smooth, precision control.

iCD™ Cutting System

Our iCD Cutting System has an extra wide opening to disperse clippings quickly and evenly, while our sloped nose design allows you to cut at higher speeds without sacrificing quality of cut.

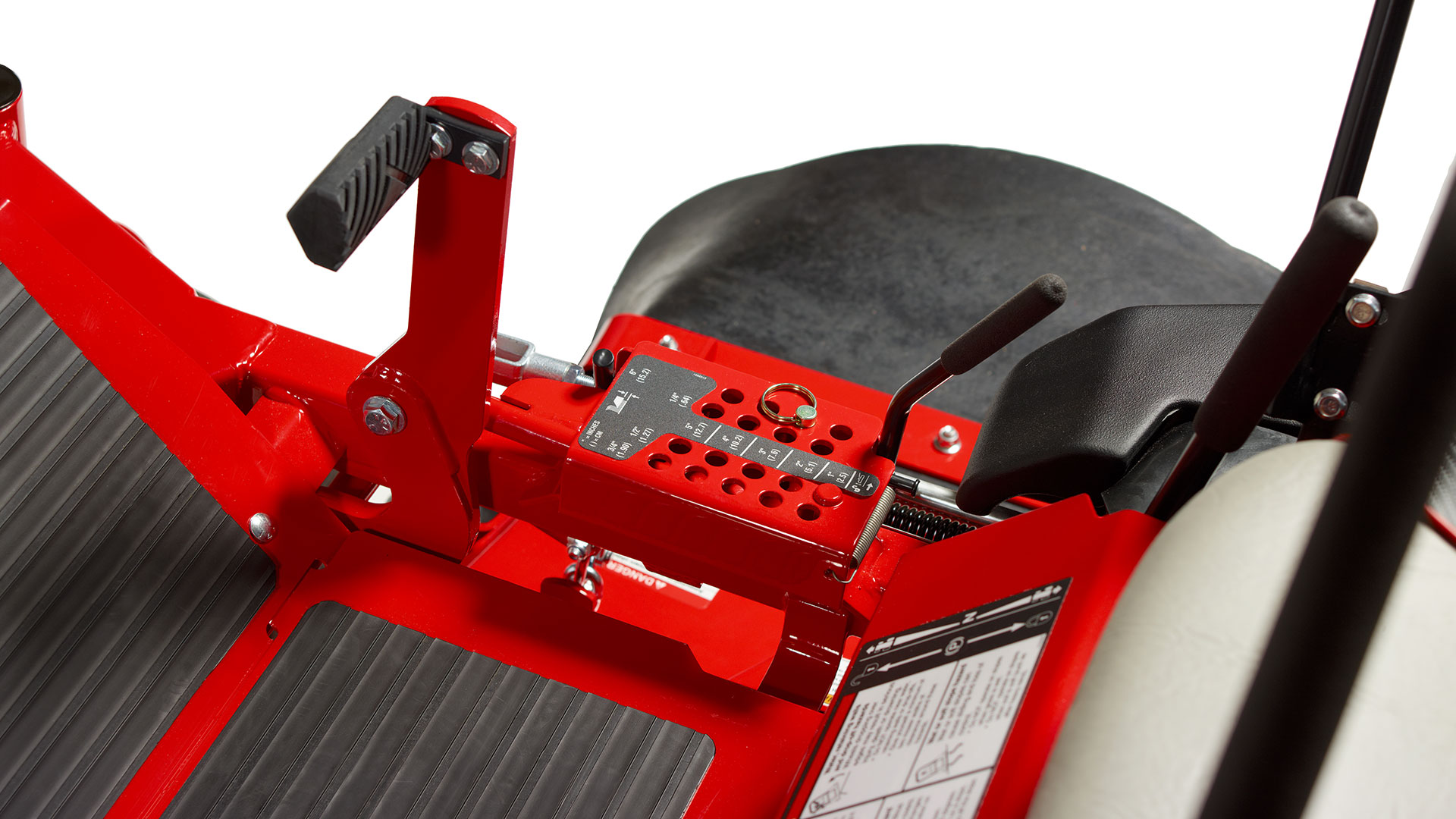

Foot-operated Deck Lift

The deck lift takes the effort out of adjusting cut height, with ranges from 1.5" - 6" in 0.25" increments.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Part Number
5901280
US MSRP ^
$10,499.00
CAN MSRP ^
$13,649.00
Engine Brand
Briggs & Stratton® Commercial Series
Engine Power Rating (hp)*
27
Number of Cylinders
2
Engine Displacement (cc)
810
Starting Type
Electric
Fuel Tank Capacity (US gal)
5
Transmission Make
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Frame
2 x 2, 7-gauge
Cutting Width (in)
61
Height-of-Cut (in)
1.5 - 5
Spindle
Cast-iron
Assembled Length (in)
79
Assembled Width (in)
76/63
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
Drive Axles
1.375
Drive Tires
24 x 12-12
Seat Armrests
true
Seat Adjustment Positions
Adjustable Suspension Seat w/ Armrests165° Foldable
Parking Brake
Internal Transaxle
Belt
Custom 5V belt with Kevlar™ cords
Control and Safety Decals
Seat Actuated Engine Kill, Blade, Clutch Safety Switch, Neutral and Parking Brake Safety Circuit, Adjustable Twin Steering Controls
Bearings
Greaseable tapered caster yoke bearings
Caster Tires
13 x 6.5-6 Pneumatic
Instrumentation
Hour meter, Fuel level gauge
Finish
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
PTO
Electric
Engine Oil Protection
N/A
Assembled Weight
1190
Operator's Manuals

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
✝See operator's manual or dealer for complete warranty details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901664
US MSRP ^
$9,999.00
CAN MSRP ^
$13,049.00
Engine Brand
Kawasaki® FX801V
Engine Power Rating (hp)*
25.5**
Number of Cylinders
2
Engine Displacement (cc)
852
Starting Type
Electric
Fuel Tank Capacity (US gal)
10
Transmission Make
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Frame
2 x 2, 7-gauge
Cutting Width (in)
61
Height-of-Cut (in)
1.5 - 5
Spindle
Cast-iron
Assembled Length (in)
79
Assembled Width (in)
76/63
Residential Limited Warranty (Product) †
3-Year limited manufacturer's warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
Drive Axles
1.375
Drive Tires
24 x 12-12
Seat Armrests
true
Seat Adjustment Positions
Mid-back with armrests
Parking Brake
Internal Transaxle
Belt
Custom 5V belt with Kevlar™ cords
Control and Safety Decals
Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
Bearings
Greaseable tapered caster yoke bearings
Caster Tires
13 x 6.5-6 Pneumatic
Instrumentation
Hour meter, Fuel level gauge
Finish
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
PTO
Electric
Engine Oil Protection
N/A
Assembled Weight
1190
Operator's Manuals

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
✝See operator's manual or dealer for complete warranty details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901665
US MSRP ^
$10,499.00
CAN MSRP ^
$13,649.00
Engine Brand
Vanguard® 810cc EFI with Oil Guard
Engine Power Rating (hp)*
28
Number of Cylinders
2
Engine Displacement (cc)
810
Starting Type
Electric
Fuel Tank Capacity (US gal)
10
Transmission Make
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Frame
2 x 2, 7-gauge
Cutting Width (in)
61
Height-of-Cut (in)
1.5 - 5
Spindle
Cast-iron
Assembled Length (in)
79
Assembled Width (in)
76/63
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
Drive Axles
1.375
Drive Tires
24 x 12-12
Seat Armrests
true
Seat Adjustment Positions
Adjustable Suspension Seat w/ Armrests
Parking Brake
Internal Transaxle
Belt
Custom 5V belt with Kevlar™ cords
Control and Safety Decals
Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
Bearings
Greaseable tapered caster yoke bearings
Caster Tires
13 x 6.5-6 Pneumatic
Instrumentation
Hour meter, Fuel level gauge
Finish
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
PTO
Electric
Engine Oil Protection
Standard
Assembled Weight
1190
Operator's Manuals

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
✝See operator's manual or dealer for complete warranty details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901666
US MSRP ^
$13,649.00
CAN MSRP ^
$17,749.00
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard
Engine Power Rating (hp)*
37
Number of Cylinders
2
Engine Displacement (cc)
993
Starting Type
Electric
Fuel Tank Capacity (US gal)
10
Transmission Make
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Frame
2 x 2, 7-gauge
Cutting Width (in)
61
Height-of-Cut (in)
1.5 - 5
Spindle
Cast-iron
Assembled Length (in)
79
Assembled Width (in)
76/63
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
Drive Axles
1.375
Drive Tires
24 x 12-12
Seat Armrests
true
Seat Adjustment Positions
Adjustable Suspension Seat w/ Armrests
Parking Brake
Internal Transaxle
Belt
Custom 5V belt with Kevlar™ cords
Control and Safety Decals
Seat Actuated Engine Kill, Blade, Clutch Safety Switch, Neutral and Parking Brake Safety Circuit, Adjustable Twin Steering Controls
Bearings
Greaseable tapered caster yoke bearings
Caster Tires
13 x 6.5-6 Pneumatic
Instrumentation
Hour meter, Fuel level gauge
Finish
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
PTO
Electric
Engine Oil Protection
Standard
Assembled Weight
1190
Operator's Manuals

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
✝See operator's manual or dealer for complete warranty details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901667
US MSRP ^
$14,699.00
CAN MSRP ^
$19,149.00
Engine Brand
Vanguard® BIG BLOCK™ EFI with Oil Guard
Engine Power Rating (hp)*
37
Number of Cylinders
2
Engine Displacement (cc)
993
Starting Type
Electric
Fuel Tank Capacity (US gal)
10
Transmission Make
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Frame
2 x 2, 7-gauge
Cutting Width (in)
72
Height-of-Cut (in)
1.5 - 5
Spindle
Hercules™ II
Assembled Length (in)
82
Assembled Width (in)
88/75
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
Drive Axles
1.375
Drive Tires
24 x 12-12
Seat Armrests
true
Seat Adjustment Positions
Adjustable Suspension Seat w/ Armrests
Parking Brake
Internal Transaxle
Belt
Custom 5V belt with Kevlar™ cords
Control and Safety Decals
Seat Actuated Engine Kill, Blade, Clutch Safety Switch, Neutral and Parking Brake Safety Circuit, Adjustable Twin Steering Controls
Bearings
Greaseable tapered caster yoke bearings
Caster Tires
13 x 6.5-6 Pneumatic
Instrumentation
Hour meter, Fuel level gauge
Finish
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
PTO
Electric
Engine Oil Protection
Standard
Assembled Weight
1424
Operator's Manuals

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
✝See operator's manual or dealer for complete warranty details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.

Part Number
5901280
5901664
5901665
5901666
5901667
US MSRP ^
$10,499.00
$9,999.00
$10,499.00
$13,649.00
$14,699.00
CAN MSRP ^
$13,649.00
$13,049.00
$13,649.00
$17,749.00
$19,149.00
Engine Brand
Briggs & Stratton® Commercial Series
Kawasaki® FX801V
Vanguard® 810cc EFI with Oil Guard
Vanguard® BIG BLOCK™ EFI with Oil Guard
Vanguard® BIG BLOCK™ EFI with Oil Guard
Engine Power Rating (hp)*
27
25.5**
28
37
37
Number of Cylinders
2
2
2
2
2
Engine Displacement (cc)
810
852
810
993
993
Starting Type
Electric
Electric
Electric
Electric
Electric
Fuel Tank Capacity (US gal)
5
10
10
10
10
Transmission Make
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph)
0-10
0-10
0-10
0-10
0-10
Ground Speed-Rev (mph)
0-5
0-5
0-5
0-5
0-5
Frame
2 x 2, 7-gauge
2 x 2, 7-gauge
2 x 2, 7-gauge
2 x 2, 7-gauge
2 x 2, 7-gauge
Cutting Width (in)
61
61
61
61
72
Height-of-Cut (in)
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
1.5 - 5
Spindle
Cast-iron
Cast-iron
Cast-iron
Cast-iron
Hercules™ II
Assembled Length (in)
79
79
79
79
82
Assembled Width (in)
76/63
76/63
76/63
76/63
88/75
Residential Limited Warranty (Product) †
3-Year Limited Manufacturer's Warranty
3-Year limited manufacturer's warranty
3-Year Limited Manufacturer's Warranty
3-Year Limited Manufacturer's Warranty
3-Year Limited Manufacturer's Warranty
Commercial Limited Warranty (Product) †
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
4-Year Limited Warranty (48 Months) or 500 Hours, Whichever Occurs First, Unlimited / Hours During the First 2 Year (24 Months). 3-Year Limited Warranty (36 Months) or 300 Hours, Whichever Occurs First on the 2-Belt Decks. Warranty Parts & Labor in First Year and Parts Only in Remaining Years. (Excludes 5901280) Belts, Tires, Battery, Blades: 90-Days (5901280 Only)
Drive Axles
1.375
1.375
1.375
1.375
1.375
Drive Tires
24 x 12-12
24 x 12-12
24 x 12-12
24 x 12-12
24 x 12-12
Seat Armrests
true
true
true
true
true
Seat Adjustment Positions
Adjustable Suspension Seat w/ Armrests165° Foldable
Mid-back with armrests
Adjustable Suspension Seat w/ Armrests
Adjustable Suspension Seat w/ Armrests
Adjustable Suspension Seat w/ Armrests
Parking Brake
Internal Transaxle
Internal Transaxle
Internal Transaxle
Internal Transaxle
Internal Transaxle
Belt
Custom 5V belt with Kevlar™ cords
Custom 5V belt with Kevlar™ cords
Custom 5V belt with Kevlar™ cords
Custom 5V belt with Kevlar™ cords
Custom 5V belt with Kevlar™ cords
Control and Safety Decals
Seat Actuated Engine Kill, Blade, Clutch Safety Switch, Neutral and Parking Brake Safety Circuit, Adjustable Twin Steering Controls
Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls
Seat Actuated Engine Kill, Blade, Clutch Safety Switch, Neutral and Parking Brake Safety Circuit, Adjustable Twin Steering Controls
Seat Actuated Engine Kill, Blade, Clutch Safety Switch, Neutral and Parking Brake Safety Circuit, Adjustable Twin Steering Controls
Bearings
Greaseable tapered caster yoke bearings
Greaseable tapered caster yoke bearings
Greaseable tapered caster yoke bearings
Greaseable tapered caster yoke bearings
Greaseable tapered caster yoke bearings
Caster Tires
13 x 6.5-6 Pneumatic
13 x 6.5-6 Pneumatic
13 x 6.5-6 Pneumatic
13 x 6.5-6 Pneumatic
13 x 6.5-6 Pneumatic
Instrumentation
Hour meter, Fuel level gauge
Hour meter, Fuel level gauge
Hour meter, Fuel level gauge
Hour meter, Fuel level gauge
Hour meter, Fuel level gauge
Finish
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
PTO
Electric
Electric
Electric
Electric
Electric
Engine Oil Protection
N/A
N/A
Standard
Standard
Standard
Assembled Weight
1190
1190
1190
1190
1424

*All power levels are stated gross horsepower at 3600 RPM per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepowser per SAE J2723 as rated by Kawasaki.
✝See operator's manual or dealer for complete warranty details.
^Suggested prices will vary by market. Prices are shown in U.S. and Canadian dollars. Set-up, delivery, documentation and destination fees not included. See dealer for details. Features vary by model. We reserve the right to change specifications, features and pricing without notice.
